K2 HEAVY DUTY STUB-END THIMBLE

1. Material:Mild steel

2. Finish:Galvanized

3. Temperature range:-20°C up to +200°C

4. Suitable for :wire rope Non-standard sizes or custom products available on request

Product Introduction

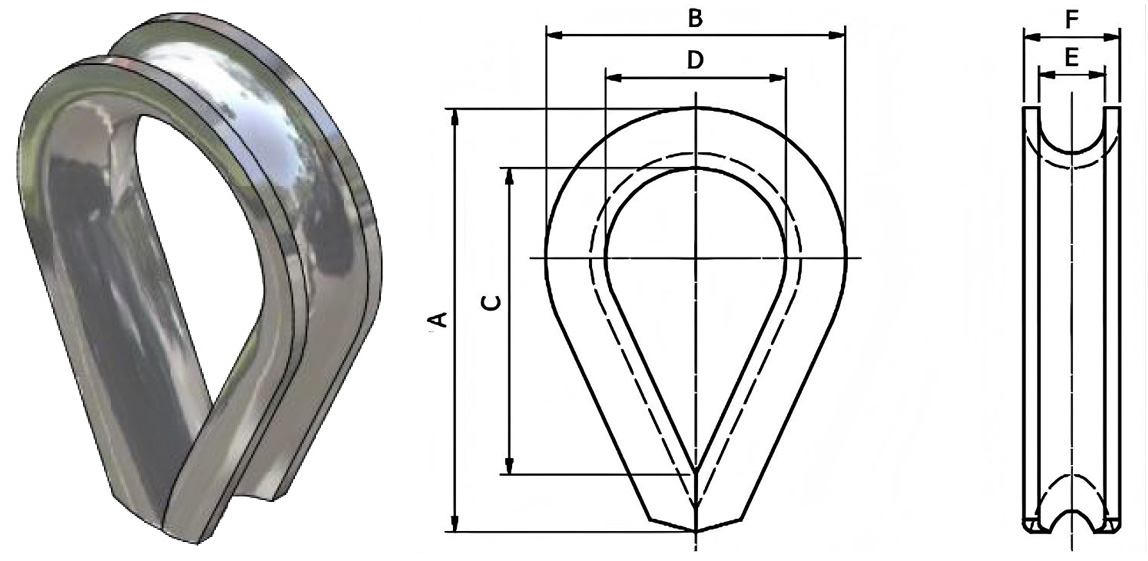

Size	Dimension						Unit Weight （KG）
Size	A	B	C	D	E	F	Unit Weight （KG）
2”	51	42	35	22	9	14	0.06
1-1/2”	64	50	45	30	11	16	0.076
3”	76	59	55	35	13	18	0.14
3-1/2”	89	73	65	45	15	20	0.23
4”	102	75	75	50	17	22	0.25
4-1/2”	115	85	85	53	19	25	0.38
5”	127	100	90	60	21	29	0.61
5-1/2”	140	110	105	65	23	32	0.78
6”	152	115	114	70	25	34	0.96
7”	178	135	135	80	30	38	1.45
8”	203	155	160	100	33	43	1.66
9”	229	175	185	115	38	47	2.40
10”	254	190	195	120	41	52	3.30
11”	280	210	215	130	46	60	5.50
12”	305	225	240	140	52	65	7.90
14”	356	240	250	150	56	72	9.45
17”	432	290	340	180	72	88	18.00
19”	483	330	390	220	82	122	28.10
22”	559	375	460	240	92	132	36.30
24”	610	410	500	250	105	145	46.00
25”	635	430	520	265	115	155	52.00
26”	660	450	540	280	130	170	55.50
