1. Meet Requirement Of EN818-2 And ISO3076
2. Can Be Used As Manual Chain Block&Lever Hoist Load Chain After Calibration
3. Surface Treatment Available:Powder Coating,Blackening,Self Color, Electrophoresis,Electrogalv, HDG
|

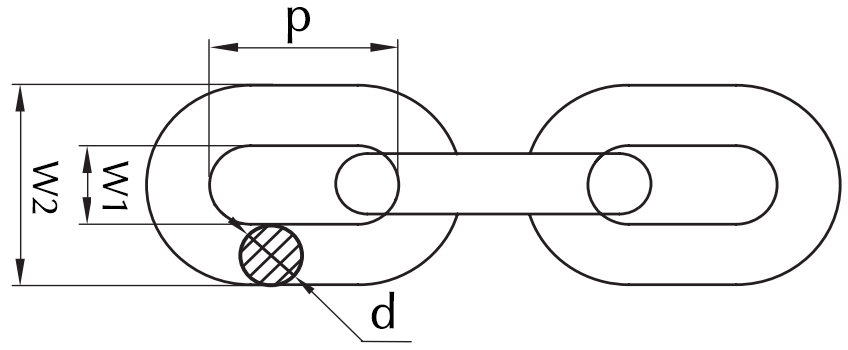

Chain Size d (mm) |
Pitch P(mm) |
W1(mm) |
W2(mm) |
WLL(t) |
PL(kN) |
BL(kN) |
KG/Mtr |
||
|
Nominal |
Tolerance |
Nominal |
Tolerance |
Min |
Max |
||||
|
4 |
±0.16 |
12 |
±0.4 |
5.2 |
14.8 |
0.5 |
12.6 |
20.1 |
0.35 |
|
5 |
±0.2 |
15 |
±0.5 |
6.5 |
18.5 |
0.8 |
19.6 |
31.4 |
0.5 |
|
6 |
±0.24 |
18 |
±0.5 |
7.8 |
21.6 |
1.12 |
28.3 |
45.2 |
0.79 |
|
7 |
±0.28 |
21 |
±0.6 |
9.5 |
25.2 |
1.5 |
38.5 |
61.6 |
1.1 |
|
8 |
±0.32 |
24 |
±0.7 |
10.9 |
28.8 |
2 |
50.3 |
80.4 |
1.4 |
|
10 |
±0.4 |
30 |
±0.9 |
13.5 |
36 |
3.15 |
78.5 |
126 |
2.2 |
|
13 |
±0.52 |
39 |
±1.2 |
17.5 |
46.8 |
5.3 |
133 |
212 |
3.8 |
|
16 |
±0.64 |
48 |
±1.4 |
21.5 |
57.6 |
8 |
201 |
322 |
5.7 |
|
18 |
±0.9 |
54 |
±1.6 |
23.4 |
66.6 |
10 |
254 |
407 |
7.3 |
|
19 |
±1 |
57 |
±1.7 |
25.6 |
68.4 |
11.2 |
284 |
454 |
8.1 |
|
20 |
±1 |
60 |
±1.8 |
26 |
74 |
12.5 |
314 |
503 |
9 |
|
22 |
±1.1 |
66 |
±2 |
29.5 |
79.2 |
15 |
380 |
608 |
10.9 |
|
23 |
±1.2 |
69 |
±2.1 |
29.9 |
84.1 |
16 |
415 |
665 |
12 |
|
26 |
±1.3 |
78 |
±2.3 |
33.8 |
96.2 |
21.2 |
531 |
849 |
14.1 |
|
28 |
±1.4 |
84 |
±2.5 |
36.4 |
104 |
25 |
616 |
985 |
15.2 |
|
32 |
±1.6 |
96 |
±2.9 |
41.6 |
118 |
31.5 |
804 |
1290 |
23 |
|
36 |
±1.8 |
108 |
±3 |
46.8 |
133 |
40 |
1020 |
1630 |
29 |
|
40 |
±2 |
120 |
±4 |
116 |
52 |
50 |
1260 |
2010 |
36 |
|
45 |
±2.3 |
135 |
±4 |
131 |
58.5 |
63 |
1590 |
2540 |
45.5 |
