Quick Adjusting Plain Trolley QA Type

Quick Adjustment To Fit The Width Of I-Beam Through Central Threaded Spindle
Can Fit Much Wider I-Beam Compared To Traditional Type

Product Introduction

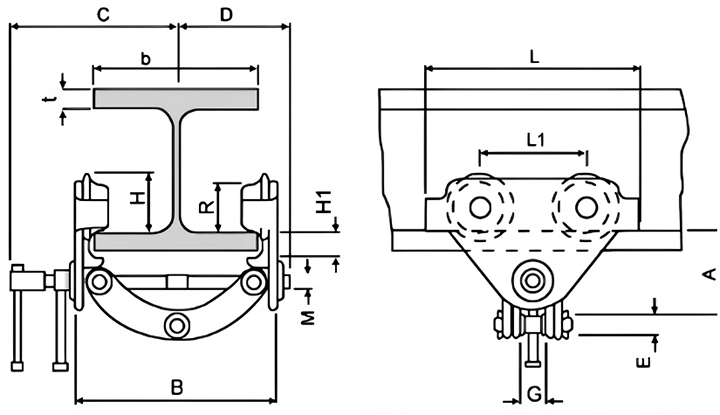

WLL(T)	TEST LOAD(kN)	I-BEAM(MM)	A	G	E	H1	H	L	L1	M	R	C	D	R	N.W(KG)
1	15	61-151	81-108	26	22	20	53	160	75	12	46	153	105	15	5.9
2	30	74-200	89-154	42	20	30	71.5	260	130	18	60	139	139	25	9.9
2	30	199-300	135-190	42	20	30	71.5	260	130	18	60	189	189	25	10.2
3	45	75-200	128-171	50	22	30.5	95.5	310	150	24	80	155	155	25	17.5
3	45	200-320	150-212	50	22	30.5	95.5	310	150	24	80	215	215	25	19.5
