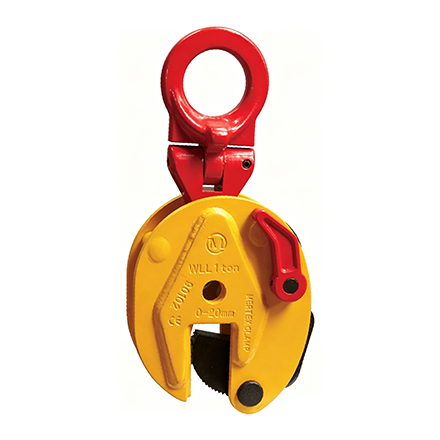

1. For lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong).
2. Articulated lifting shackle.
3. CD lifting clamps are equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
4. The clamp is locked in closed as well as in open position.
|
Model |
WLL (KG) |
Jaw Opening (MM) |

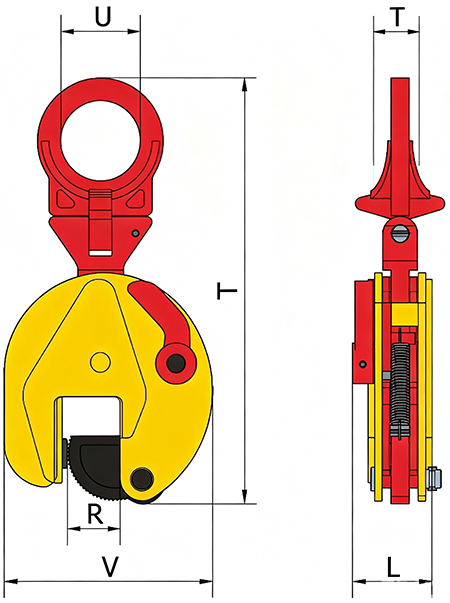

Dimension(MM) |
N.W (KG) |
|||
|
T |
U |
V |
L |
||||
|
CD0.5 |
500 |
0~15 |
205 |
30 |
105 |
48 |
2 |
|
CD1 |
1000 |
0~20 |
300 |
50 |
145 |
66 |
5 |
|
CD2 |
2000 |
0~25 |
385 |
68 |
175 |
75 |
8 |
|
CD3.2 |
3200 |
0~30 |
430 |
75 |
215 |
102 |
15 |
|
CD5 |
5000 |
0~50 |
500 |
68 |
232 |
112 |
23 |
|
CD8 |
8000 |
0~45 |
600 |
88 |
290 |
125 |
37 |
|
CD12 |
12000 |
50~90 |
700 |
90 |
420 |
128 |
50 |
|
CD16 |
16000 |
60~100 |
710 |
100 |
445 |
128 |
65 |
|
CD20 |
20000 |
0~80 |
948 |
100 |
563 |
140 |
160 |
|
CD30 |
30000 |
10~90 |
944 |
100 |
568 |
142 |
167 |
