1. Standard design for vertical lifting clamp
2. The spring-loaded tightening lock mechanism ensure positive initial clamping force
3. Equipped with safety mechanism which can avoid slipping when operation
4. Quenched die-forged ally steel cam provide greater durability
|
Model |
WLL (KG) |
Jaw Opening (MM) |

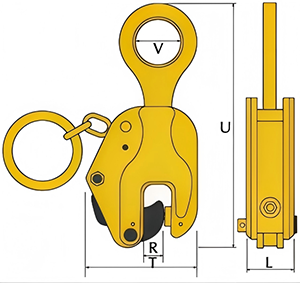

Dimension(MM) |
N.W (KG) |
|||
|
T |
U |
V |
L |
||||
|
CDH0.8 |
800 |
0~16 |
123 |
265 |
40 |
44 |
2.8 |
|
CDH1 |
1000 |
0~22 |
124 |
295 |
50 |
54 |
3.6 |
|
CDH2 |
2000 |
0~30 |
154 |
385 |
54 |
56 |
5.5 |
|
CDH3 |
3000 |
0~40 |
180 |
400 |
60 |
72 |
10 |
|
CDH5 |
5000 |
0~50 |
222 |
483 |
68 |
76 |
17 |
|
CDH8 |
8000 |
0~60 |
265 |
535 |
65 |
90 |
26 |
|
CDH10 |
10000 |
0~90 |
290 |
600 |
80 |
95 |
32 |
|
CDH12 |
12000 |
25~90 |
408 |
700 |
80 |
113 |
48 |
|
CDH16 |
16000 |
60~125 |
465 |
780 |
100 |
121 |
80 |
|
CDH20 |
20000 |
0~90 |
563 |
933 |
100 |
140 |
149 |
|
CDH30 |
30000 |
10~90 |
568 |
918 |
100 |
142 |
155 |
