1. Design for transportation of plate bundles or plate thickness over 5mm
2. Large jaw opening
3. Used by pair
|
Model |
WLL By Pair (KG) |
Jaw Opening (MM) |

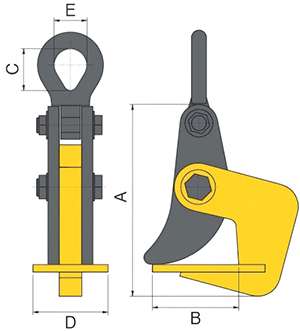

Dimension(MM) |
N.W (KG) |
||||
|
A |
B |
C |
D |
E |
||||
|
TCH1 |
1000 |
5~32 |
245 |
110 |
44 |
100 |
32 |
6 |
|
TCH2 |
2000 |
5~32 |
220 |
88 |
73 |
100 |
50 |
5.4 |
|
TCH4 |
4000 |
5~50 |
265 |
118 |
92 |
100 |
64 |
10 |
|
TCH6 |
6000 |
5~75 |
350 |
172 |
130 |
130 |
90 |
24.5 |
|
TCH8 |
8000 |
5~73 |
350 |
172 |
130 |
130 |
90 |
26.5 |
|
TCH10 |
10000 |
5~100 |
470 |
215 |
130 |
150 |
114 |
48 |
|
TCH10L |
10000 |
50~150 |
510 |
215 |
130 |
150 |
114 |
52 |
