HORIZONTAL PLATE LIFTING CLMAP(HPC)

1. Design for transportation of plate bundles

2. Large jaw opening

3. Used by pair

Product Introduction

Model

WLL By Pair

(KG)

Jaw Opening

(MM)

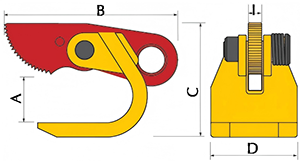

Dimension(MM)

N.W

(KG)

A

B

C

D

I

HPC1.5

1500

0~50

50

210

130

100

30

4.3

HPC3

3000

0~50

50

236

203

110

36

6

HPC5

5000

0~60

60

273

251

130

40

12

HPC9

9000

0~100

100

380

290

165

40

28.4
