DRUM CLAMP (TDC)
1. Design for transportation of drum:if the drum is empty or sealed, one clamp will do,if the drum is open and full, should use the clamps in pair
2. Compact design with small weight
1. Design for transportation of drum:if the drum is empty or sealed, one clamp will do,if the drum is open and full, should use the clamps in pair
2. Compact design with small weight
|
Model |
WLL (KG) |
Jaw Opening (MM) |

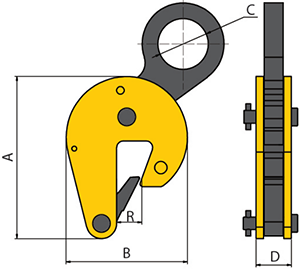

Dimension(MM) |
N.W (KG) |
|||
|
A |
B |
C |
D |
||||
|
TDC0.5 |
500 |
0~17 |
128 |
96 |
40 |
28 |
1.6 |
