1. Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads.
2. Flexible application due to wide adjustment range
3. The central threaded spindle allows easy attachment and a safe and secure grip.
4. The spindle can be secured against loosening.
|

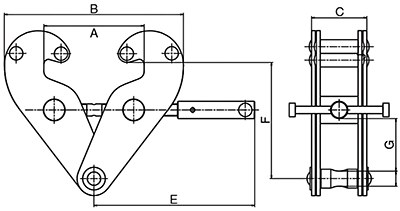

WLL(T) |
TEST LOAD(kN) |
I-BEAM(MM) |
A (MM) MAX |
B(MM) |
C(MM) |
E(MM) |
F(MM) |
G (MM) |
N.W (KG) |
||
|
|
|
|
|
MIN |
MAX |
|
|
MIN |
MAX |
|
|
|
1 |
12.3 |
75~220 |
260 |
180 |
360 |
64 |
215 |
102 |
155 |
25 |
3.8 |
|
2 |
24.5 |
75~220 |
260 |
180 |
360 |
74 |
215 |
102 |
155 |
25 |
4.6 |
|
3 |
36.8 |
80~320 |
354 |
235 |
490 |
103 |
260 |
140 |
225 |
45 |
9 |
|
5 |
61.3 |
80~320 |
354 |
235 |
490 |
110 |
260 |
140 |
225 |
45 |
11 |
|
10 |
122.5 |
90~320 |
365 |
320 |
505 |
120 |
280 |
170 |
235 |
50 |
16 |
