1. Big Shackle suspension point.
2. Suitable for pulling and lifting at angles across the beam.
3. Up to 45° side loading and 15° cross loading.
4. Highly flexible–for lifting, pulling or as permanent anchor point.Evenly distributed loads achieved through maximum jaw surface area.
|

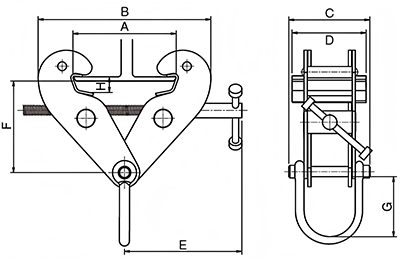

WLL(T) |
TEST LOAD(kN) |
I-BEAM(MM) |
A (MM) MAX |
B(MM) |
C(MM) |
E(MM) |
F(MM) |
G (MM) |
N.W (KG) |
||
|
MIN |
MAX |
MIN |
MAX |
||||||||
|
1 |
15.0 |
75~220 |
260 |
180 |
330 |
138 |
122 |
220 |
132 |
155 |
88 |
|
2 |
30.0 |
75~220 |
260 |
180 |
330 |
156 |
122 |
220 |
132 |
155 |
91 |
|
3 |
45.0 |
80~320 |
390 |
265 |
466 |
195 |
150 |
262 |
178 |
228 |
108 |
|
5 |
75.0 |
80~320 |
390 |
265 |
466 |
237 |
150 |
262 |
178 |
228 |
108 |
|
10 |
150.0 |
80~350 |
390 |
285 |
520 |
310 |
200 |
300 |
186 |
236 |
176 |
