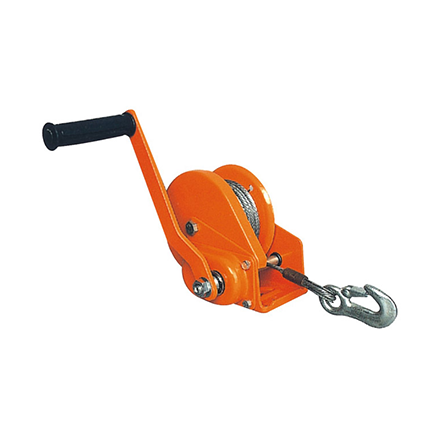

1. Automatic braking hand winch
2. With double brake pawls made of heat treated alloy steel to help withstand wear and provide increased safety under all operating conditions.
3. All gears are alloy steel and electroplated to resist corrosion.
4. Can be used with both steel wire rope and webbing.
|
Model |
BHW800 |
BHW1200 |
BHW1600 |
BHW1800 |
BHW2600 |
|
|
Rated Capacity |
lbs |
800 |
1200 |
1600 |
1800 |
2600 |
|
kg |
362 |
550 |
700 |
800 |
1180 |
|
|
BS(kg) |
544 |
825 |
1080 |
1200 |
1770 |
|
|
Gear Ratio |
3.2:1 |
4.2:1 |
4.0:1 |
5.0:1 |
10.0:1 |
|
|
Way/Speed |
2 Way/1 Speed |
2 Way/1 Speed |
2 Way/1 Speed |
2 Way/1 Speed |
2 Way/1 Speed |
|
|
With Wire Rope |
Cable |
4MM*6M |
4MM*8M |
5MM*10M |
5MM*10M |
5MM*10M |
|
Kg/Pc |
2.73 |
4.5 |
6.15 |
9.05 |
11.25 |
|
|
With Webbing |
Strap |
50MM*6M |
50MM*8M |
50MM*10M |
50MM*10M |
50MM*10M |
|
Kg/Pc |
2.68 |
4.41 |
6.0 |
8.9 |
11.1 |
|
|
Bare Winch(kg/Pc) |
2.25 |
3.8 |
5.2 |
8.1 |
10.3 |
|
|

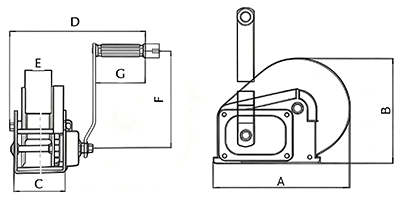

Dimension(MM) |
A |
145 |
182 |
195 |
244 |
292 |
|
B |
120 |
156 |
174 |
200 |
214 |
|
|
C |
82 |
88 |
93 |
108 |
128 |
|
|
D |
247 |
288 |
292 |
292 |
318 |
|
|
E |
51 |
51 |
51 |
60 |
60 |
|
|
F |
165 |
204 |
204 |
312 |
312 |
|
|
G |
108 |
109 |
109 |
109 |
109 |
|
|
H |
32 |
32 |
32 |
32 |
32 |
|
