G100 Chain Sling According To EN818-4
|
Chain Size (mm) |
WLL（t） |
||||||
|

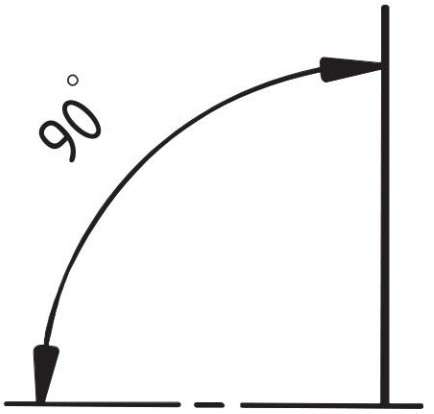

Single Leg |

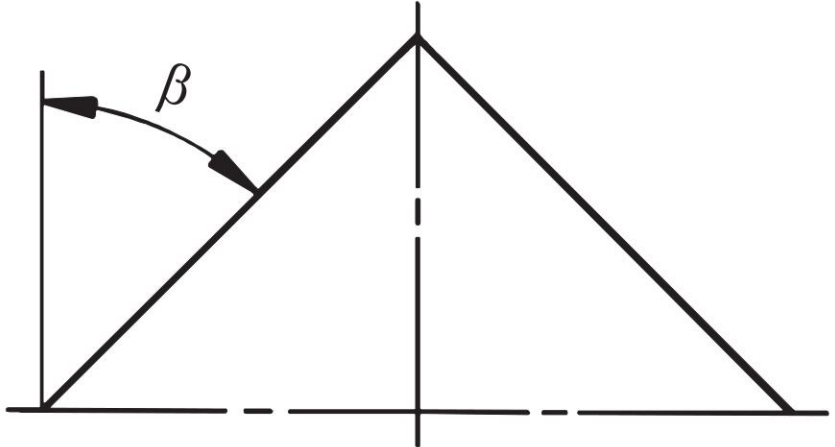

Two Legs
|

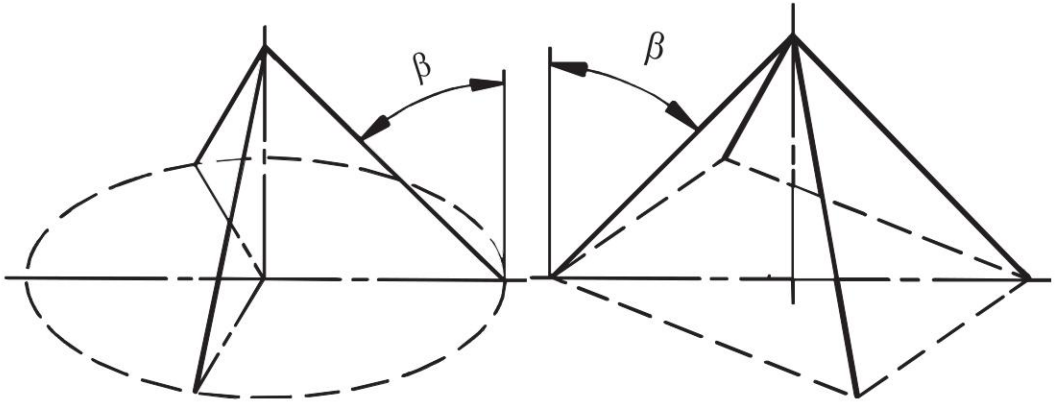

Three&Four Legs
|

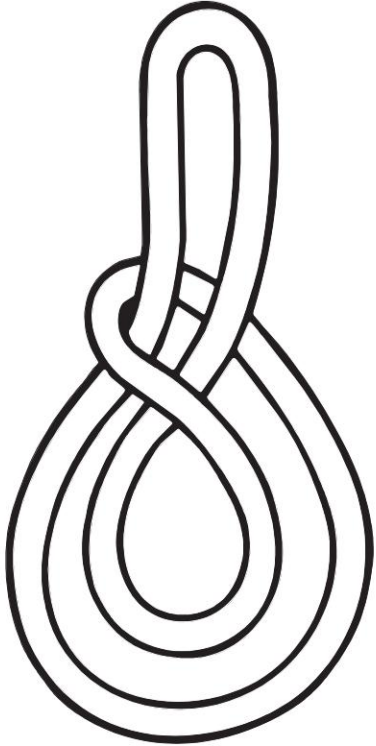

Choke Hitch
|
||||
|
0°<β≤45° |
0°<β≤45° |
0°<β≤45° |
0°<β≤45° |
||||
|
Factor 1.4 |
Factor 1 |
Factor 2.1 |
Factor 1.5 |
Factor 1.6 |
|||
|
6 |
1.4 |
1.96 |
1.4 |
2.94 |
2.1 |
2.24 |
|
|
7 |
1.9 |
2.66 |
1.9 |
3.99 |
2.85 |
3.04 |
|
|
8 |
2.5 |
3.5 |
2.5 |
5.25 |
3.75 |
4 |
|
|
10 |
4 |
5.6 |
4 |
8.4 |
6 |
6.4 |
|
|
13 |
6.7 |
9.38 |
6.7 |
14.07 |
10.05 |
10.72 |
|
|
16 |
10 |
14 |
10 |
21 |
15 |
16 |
|
|
19 |
14 |
19.6 |
14 |
29.4 |
21 |
22.4 |
|
|
20 |
16 |
22.4 |
16 |
33.6 |
24 |
25.6 |
|
|
22 |
19 |
26.6 |
19 |
39.9 |
28.5 |
30.4 |
|
|
26 |
26.5 |
37.1 |
26.5 |
55.65 |
39.75 |
42.4 |
|
|
32 |
40 |
56 |
40 |
84 |
60 |
64 |
|
WLL According To EN818-4
|
WLL REDUCTION |
|
|
Chain Sling Temperature |
WLL Reduction By Percentage |
|
-40°C -200°C |
None |
|
200°C -300°C |
10% |
|
300°C -400°C |
25% |
|
Above 400°C |
Prohibited |
