Chain Size (mm) |
WLL（t） |
|||||
|

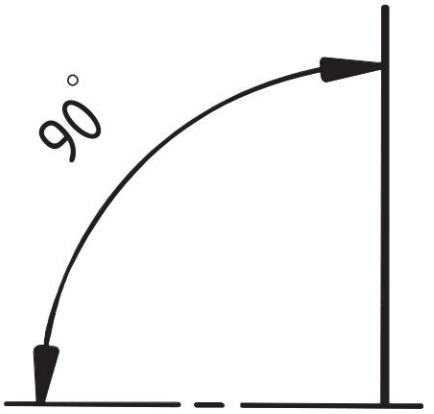

Single Leg |

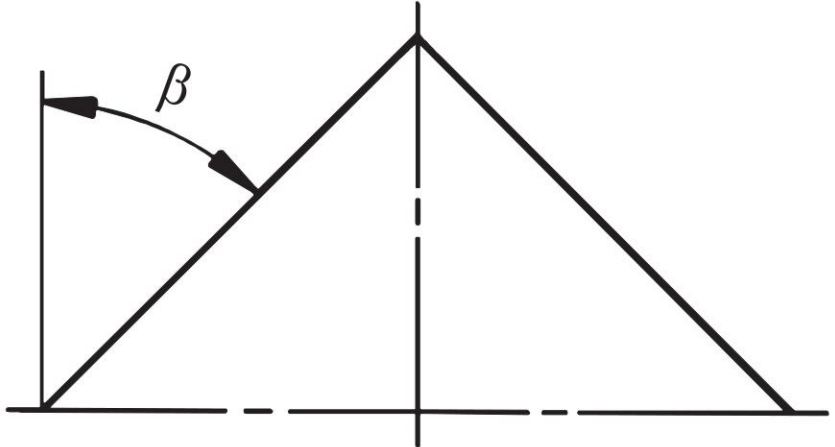

Two Legs |

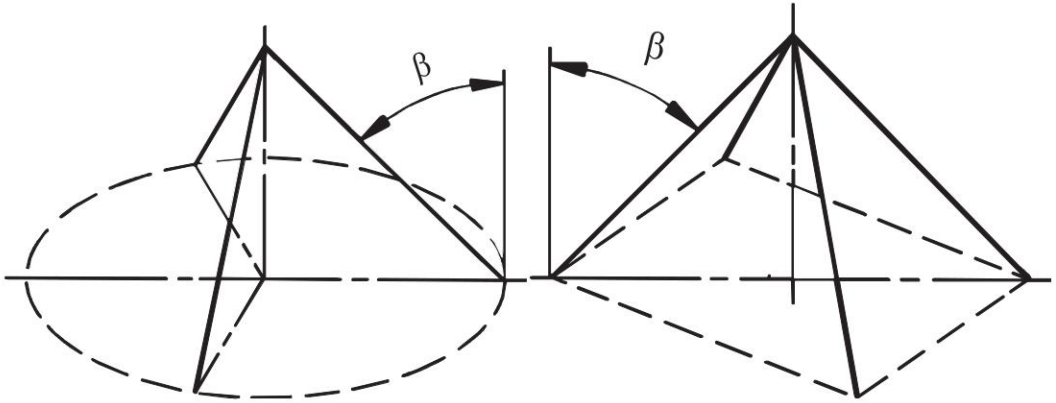

Three&Four Legs |

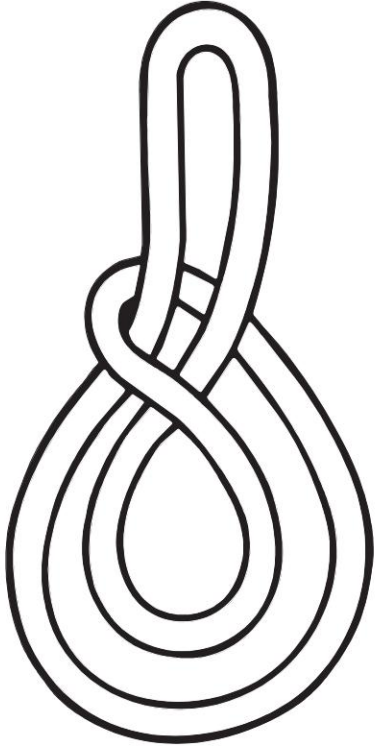

Choke Hitch |
|||
|
0°<β≤45° |
45°<β≤60° |
0°<β≤45° |
45°<β≤60° |
|||
|
Factor 1.4 |
Factor 1 |
Factor 2.1 |
Factor 1.5 |
Factor 1.6 |
||
|
6 |
1.12 |
1.60 |
1.12 |
2.36 |
1.70 |
1.80 |
|
7 |
1.50 |
2.12 |
1.50 |
3.15 |
2.24 |
2.50 |
|
8 |
2.00 |
2.80 |
2.00 |
4.25 |
3.00 |
3.15 |
|
10 |
3.15 |
4.25 |
3.15 |
6.70 |
4.75 |
5.00 |
|
13 |
5.30 |
7.50 |
5.30 |
11.20 |
8.00 |
8.50 |
|
16 |
8.00 |
11.20 |
8.00 |
17.00 |
11.80 |
12.50 |
|
18 |
10.00 |
14.00 |
10.00 |
21.20 |
15.00 |
16.00 |
|
20 |
12.50 |
17.00 |
12.50 |
26.50 |
19.00 |
20.00 |
|
22 |
15.00 |
21.20 |
15.00 |
31.50 |
22.40 |
23.60 |
|
26 |
21.20 |
30.00 |
21.20 |
45.00 |
31.50 |
33.50 |
|
32 |
31.50 |
45.00 |
31.50 |
67.00 |
47.50 |
50.00 |
WLL According To EN818-4
|
WLL REDUCTION |
|
|
Chain Sling Temperature |
WLL Reduction By Percentage |
|
-40°C -200°C |
None |
|
200°C -300°C |
10% |
|
300°C -400°C |
25% |
|
Above 400°C |
Prohibited |
