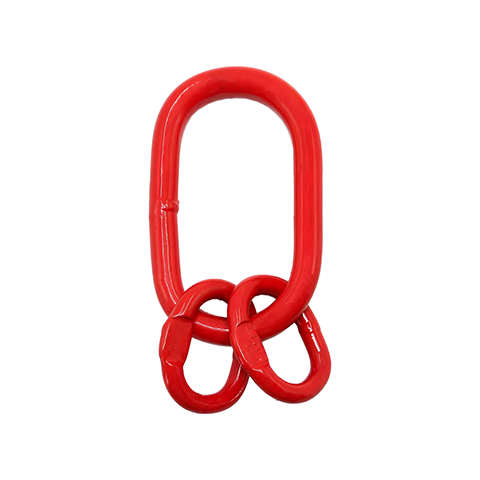

G80 EUROPEAN TYPE MASTER LINK ASSEMBLY(DS0802)

1. Alloy Steel -Quenched And Tempered

2. Safety Factor 4:1

3. WLL Designed According To 3-4 Legs Sling 0- 45°

4. Individually Proof Tested at 2.5 Times Of The WLL

5. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot

6. MBL Tested By Random Pick Each Lot

7. 100% Magnaflux Crack Detection

8. Surface Finish:Powder Coated

9. According To EN1677-4,Chain Sling Refer To EN818-4,Wire Rope Sling Refer To EN13414,Webbing Sling Refer To EN1492-1

Product Introduction

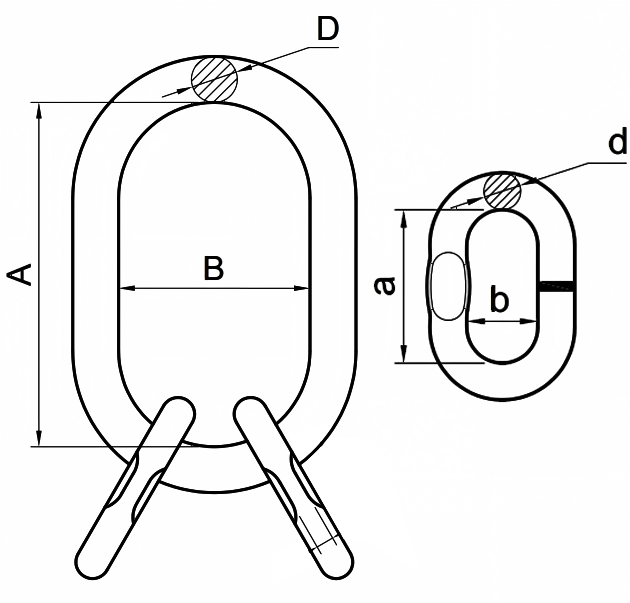

Drawing

Item No.

G80 Chain

Dimension(mm)

WLL(t)

KG/PC

A

B

D

a

b

d



DS0802-6

6

135

75

18

54

25

13

2.36

1.18

DS0802-7

7

135

75

18

60

38

13

3.15

1.24

DS0802-8

8

160

90

22

70

34

16

4.25

2.2

DS0802-10

10

180

100

26

85

40

18

6.7

3.4

DS0802-13

13

200

110

32

115

450

22

11.2

6.1

DS0802-16

16

260

140

36

140

65

26

17

9.98

DS0802-18

18

340

180

45

180

100

32

21.2

18.9

DS0802-20

20

350

190

50

180

100

32

26.5

22.6

DS0802-22

22

350

190

50

180

100

36

31.5

25.2

DS0802-26

26

400

200

56

180

100

40

45

35.2

DS0802-28

28

430

220

63

180

100

45

50

47

DS0802-32

32

460

250

72

200

110

50

63

66.5
