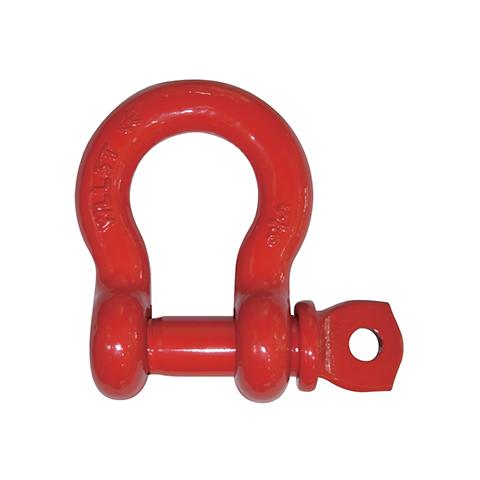

1. Both Body And Bolt Alloy Steel-Quenched And Tempered
2. MBL Tested By Random Pick Each Lot
3. 100% Magnaflux Crack Detection
4. Surface Finish:Powder Coated
5. Working Temperature -40°C-200°C
6. Safety Factor 5:1
7. According To Standard EN13889+A1-2008
|

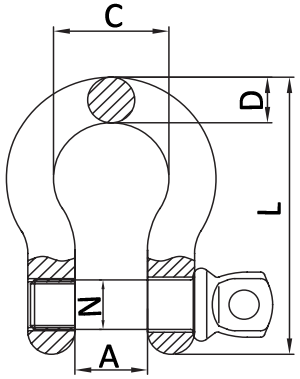

Drawing |
Item No. |
Size |
Dimension(mm) |
WLL(t) |
KG/PC |
||||
|
A |
C |
D |
L |
N |
|||||
|
|
DS0833-5/16 |
5/16” |
13.5 |
21.3 |
8 |
53 |
9.5 |
1.2 |
0.09 |
|
DS0833-3/8 |
3/8” |
16.8 |
25.9 |
9.7 |
63.2 |
11 |
1.6 |
0.14 |
|
|
DS0833-7/16 |
7/16” |
19 |
29.5 |
11.2 |
74 |
13 |
2.5 |
0.17 |
|
|
DS0833-1/2 |
1/2” |
20.6 |
33.3 |
12.7 |
83.3 |
16 |
3.3 |
0.33 |
|
|
DS0833-5/8 |
5/8” |
27 |
42.9 |
17.5 |
106.4 |
19 |
5 |
0.62 |
|
|
DS0833-3/4 |
3/4” |
32 |
50.8 |
20.6 |
126.2 |
22 |
7 |
1.07 |
|
|
DS0833-7/8 |
7/8” |
36.6 |
57.9 |
24.6 |
148 |
25 |
9.5 |
1.64 |
|
|
DS0833-1 |
1” |
43 |
68.3 |
27 |
166.6 |
28 |
12.5 |
2.28 |
|
|
DS0833-1-1/8 |
1-1/8” |
46 |
74 |
31.75 |
190 |
32 |
15 |
3.36 |
|
|
DS0833-1-1/4 |
1-1/4” |
51.6 |
82.5 |
35 |
210 |
35 |
18 |
4.31 |
|
|
DS0833-1-3/8 |
1-3/8” |
57 |
92 |
36 |
232.7 |
38 |
21 |
6.14 |
|
|
DS0833-1-1/2 |
1-1/2” |
60.5 |
98 |
41 |
254 |
42 |
30 |
7.81 |
|
|
DS0833-1-3/4 |
1-3/4” |
73.2 |
126 |
57.2 |
313.7 |
51 |
40 |
12.61 |
|
|
DS0833-2 |
2” |
82.5 |
146 |
61 |
347.5 |
57 |
55 |
20.43 |
|
