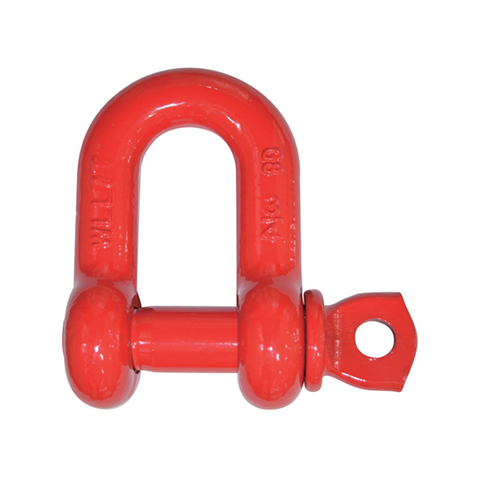

1. Both Body And Bolt Alloy Steel-Quenched And Tempered
2. MBL Tested By Random Pick Each Lot
3. 100% Magnaflux Crack Detection
4. Surface Finish:Powder Coated
5. Working Temperature -40°C-200°C
6. Safety Factor 5:1
7. According To Standard EN13889+A1-2008
|

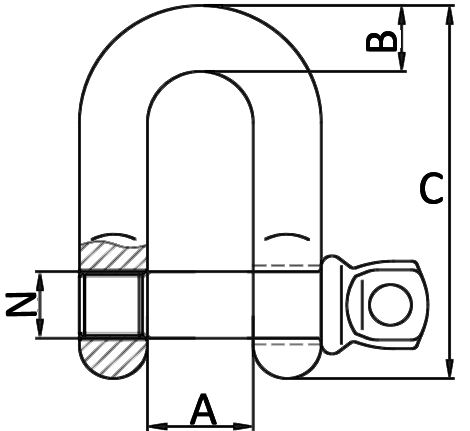

Drawing |
Item No. |
Size |
Dimension(mm) |
WLL(t) |
KG/PC |
|||
|
A |
B |
C |
N |
|||||
|
|
DS0835-5/16 |
5/16” |
13.5 |
8 |
48.5 |
9.5 |
1.2 |
0.08 |
|
DS0835-3/8 |
3/8” |
16.8 |
9.7 |
58.4 |
11 |
1.6 |
0.13 |
|
|
DS0835-7/16 |
7/16” |
19 |
11.2 |
67.6 |
13 |
2.5 |
0.20 |
|
|
DS0835-1/2 |
1/2” |
20.6 |
12.7 |
77 |
16 |
3.3 |
0.27 |
|
|
DS0835-5/8 |
5/8” |
27 |
17.5 |
97.3 |
19 |
5 |
0.57 |
|
|
DS0835-3/4 |
3/4” |
32 |
20.6 |
116 |
22 |
7 |
1.19 |
|
|
DS0835-7/8 |
7/8” |
36.6 |
24.6 |
135 |
25 |
9.5 |
1.43 |
|
|
DS0835-1 |
1” |
43 |
27 |
152 |
28 |
12.5 |
2.15 |
|
|
DS0835-1-1/8 |
1-1/8” |
46 |
31.75 |
172 |
32 |
15 |
3.06 |
|
|
DS0835-1-1/4 |
1-1/4” |
51.6 |
35 |
206 |
35 |
18 |
4.11 |
|
|
DS0835-1-3/8 |
1-3/8” |
57 |
36 |
206 |
38 |
21 |
5.28 |
|
|
DS0835-1-1/2 |
1-1/2” |
60.5 |
41 |
230 |
42 |
30 |
7.23 |
|
|
DS0835-1-3/4 |
1-3/4” |
73.2 |
57.2 |
279 |
51 |
40 |
12.13 |
|
|
DS0835-2 |
2” |
82.5 |
61 |
324 |
57 |
55 |
19.19 |
|
