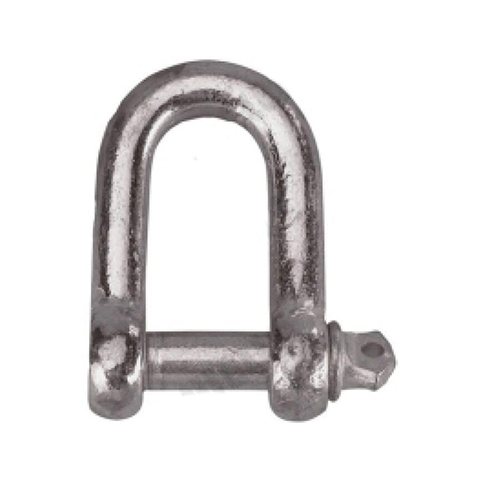

1. Forged From Carbon Steel With Open-Die Forging Process
2. Test Load Is 2 Times Of The WLL
3. Material SS304/316 Available
|
Item No. |
WLL(KG) |
Dimension(MM) |
N.W(KG) |
|||
|
B |
D |
L |
d1 |
|||
|
JISD-5 |
90 |
10 |
10 |
18.5 |
5 |
0.014 |
|
JISD-6 |
150 |
12 |
11 |
23 |
6.5 |
0.028 |
|
JISD-8 |
250 |
14 |
15 |
31 |
8.5 |
0.049 |
|
JISD-10 |
400 |
18 |
17 |
36 |
10 |
0.049 |
|
JISD-12 |
600 |
24 |
23 |
46 |
13 |
0.18 |
|
JISD-16 |
800 |
30 |
32 |
59 |
17 |
0.42 |
|
JISD-20 |
1000 |
36 |
37 |
74 |
20 |
0.72 |
|
JISD-22 |
1500 |
43 |
43 |
86 |
23 |
1.18 |
|
JISD-25 |
2000 |
47 |
50 |
95 |
27 |
1.8 |
|
JISD-28 |
2500 |
55 |
56 |
110 |
30 |
2.5 |
|
JISD-32 |
3200 |
64 |
64 |
130 |
34 |
3.7 |
|
JISD-38 |
4200 |
76 |
76 |
145 |
40 |
6.1 |
|
JISD-44 |
6500 |
80 |
90 |
160 |
47 |
9.4 |
|
JISD-50 |
8000 |
90 |
100 |
185 |
53 |
11.5 |
