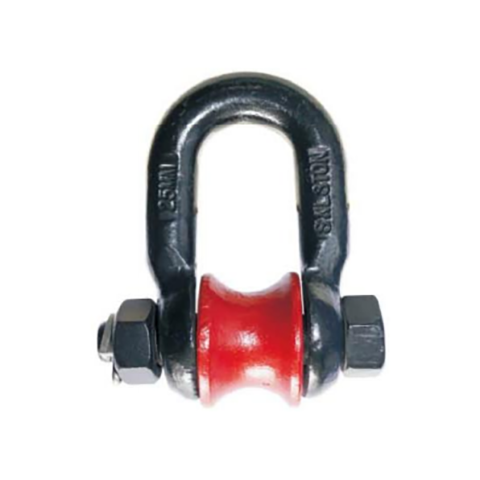

Rolling Wheel Unloading Buckle Shackle(RWS)

1. Test Load Is 2.5 Times Of The WLL

2. MBL Is 4 Times Of The WLL

Product Introduction

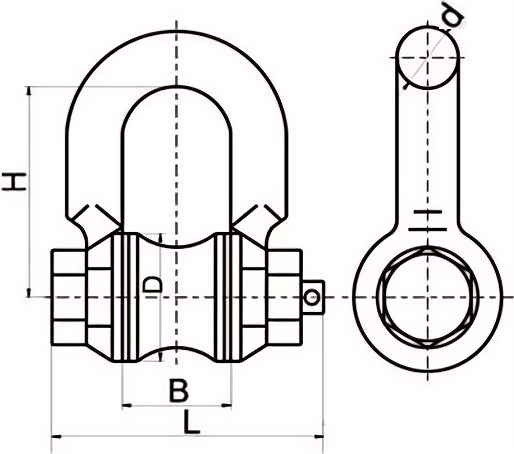

Drawing

Item No.

WLL(t)

Dimension(MM)

N.W(KG)

d

D

H

B

L

RWS-3T

3

25

63

105

47

123

3

RWS-4T

4

28

74

122

54

141

4.5

RWS-6-5T

5

32

80

144

64

160

6.2
