Model

V05

V1

V1.5

V2

V3

V3P

V5

V7.5

V10

V15

V20

V30

V50

V75

WLL(t)

0.5

1

1.5

2

3

3

5

7.5

10

15

20

30

50

75

Standard Lift(m)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

Test Load(kN)

6.25

12.5

18.75

25

37.5

37.5

62.5

93.75

125

187.5

250

375

625

937.55

Effort Required For Rated WLL(n)

210

260

270

270

300

300

320

330

340

340

360*2

360*2

360*2

360*2

Hand Chain(mm)

5*23.6

Strands Of Load Chain

1

1

1

2

2

1

2

3

4

6

8

12

22

30

Load Chain(mm)

6*18

8*24

10*30

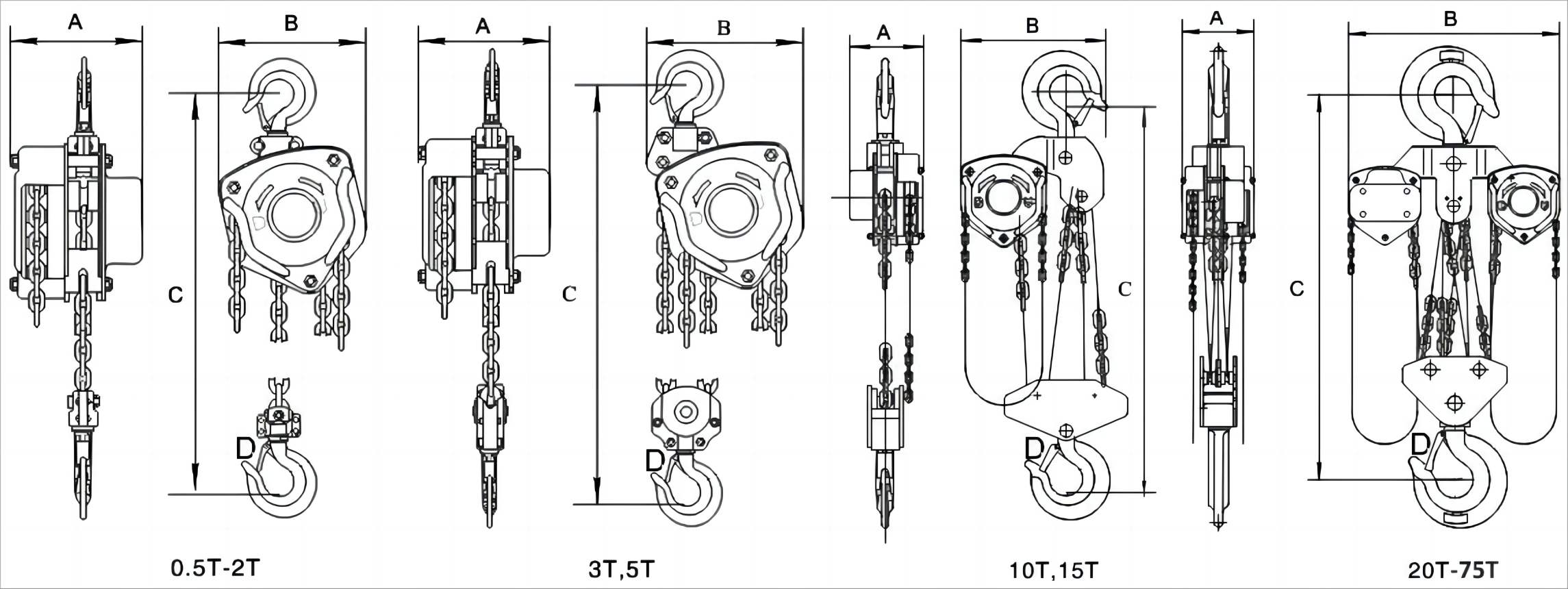

Dimension

(mm)

A

132

152

152

152

152

181

189

189

189

194

224

330

410

570

B

152

152

180

170

207

253

267

380

380

400

440

680

900

900

C

315

355

375

405

500

636

680

650

750

880

940

1000

1950

2100

D

34

38

48

48

50

64

57

72

80

85

106

110

130

180

K

27

27

36

36

38

48

48

47

54

58

70

85

130

160

N.W(kg)

8.5

11

14.5

16.5

23

28

39.5

44

72

102

156

225

1085

1600

Packing Meas(cm)

24*16*18

24*20*18

32*22*20

32*22*20

32*25*20

34*24*19

40*30*20

50*48*30

50*48*30

75*55*30

72*70*32

78*70*35

160*130*75

160*130*90

Extra Weight Per Lifting Meter (kg)

1.6

1.6

2.3

2.3

3.7

3.0

5.5

7.8

9.6

14

19.6

28.3

50

68
