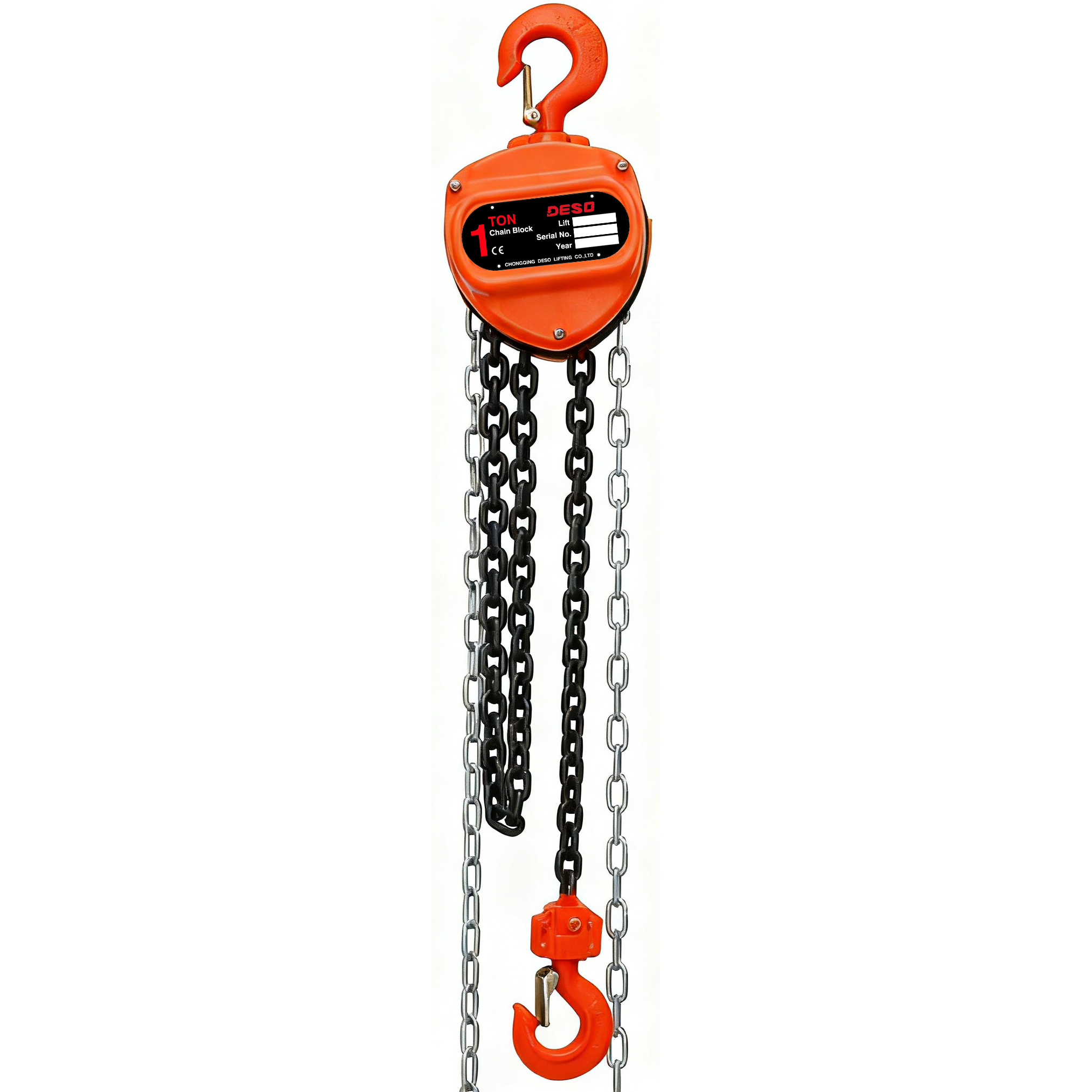

Chain Block CK Type HSZ-CK

1. Commercial Type Not Recommended High-Intensity Full Load

2. Compact Design

3. With Bearing And Optimized Gears,Less Effort Required To Lift Rated Capacity

4. Automatic Double Pawl Brake System,Asbestos Free Friction Disc

5. Engineering-Optimized Hand Chain Wheel,Preventing Hand Chain Stack In Fast Operation

6. Quenched And Tempered High Tensile G80 Load Chain And Hooks

7. Smooth Surface With Powder Coated Preventing Rust

8. Individual Serial No.For Each Set,Wheel Cover With Label

Product Introduction

Model		CK05	CK1	CK1.5	CK2	CK3	CK5	CK10	CK20
WLL(t)		0.5	1	1.5	2	3	5	10	20
Standard Lift(m)		3	3	3	3	3	3	3	3
Test Load(kN)		6.25	12.5	18.75	25	37.5	62.5	125	250
Effort Required For Rated WLL(n)		250	305	340	410	340	415	415	415*2
Hand Chain(mm)		5*25
Strands Of Load Chain		1	1	1	1	2	2	4	8
Load Chain(mm)		6	6	8	8	8	10	10	40

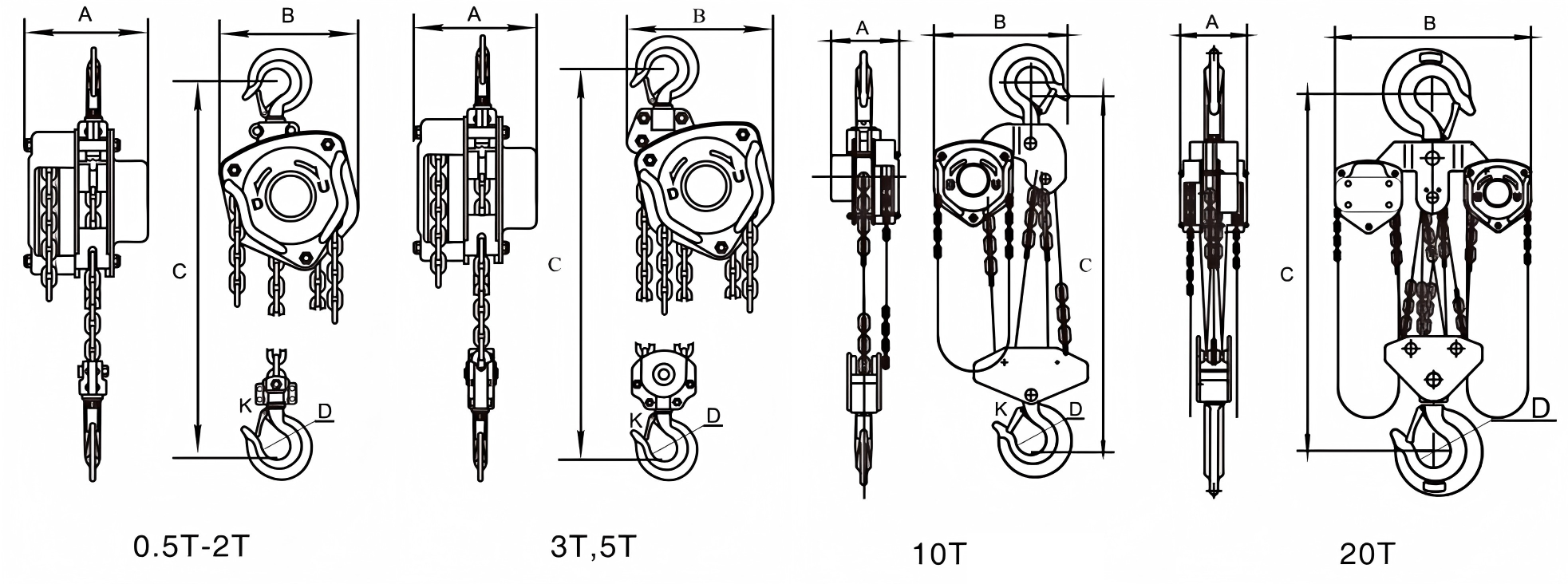

Dimension (mm)	A	113	126	141	141	142	163	163	191
	B	125	147	183	183	183	215	404.5	595
	C	255	306 368	368	368	486	616	750	1000
	D	36	40	45	50	58	64	85	110
	K	30	34	38	41	48	52	64	85
N.W(kg)		8.5	11	18	18	27	42	83	193
Packing Meas(cm)		251813.5	252014.7	332516	332516	332716	433419	504121	643864
Extra Weight Per Lifting Meter (kg)		1.6	1.6	2.3	2.3	3.7	5.5	9.8	19.6
