Lever Hoist K Type HSZ-K

Compact Design, Small Body, Low Headroom,Premium Quality
High Precision Machining Gears
Impact Resistance Gear Cover
Double Pawl Brake System, Fused Brake Disc
High Precision Caged Roller Bearing
Chain Stopper Protects The Body
Calibrated G80 Chain For Heavy Duty Use
Quenched And Tempered Hooks
Individual Serial No.For Each Set,With Aluminium Sticker Showing Brand Deso,Capacity.Serial No.
Meet All The Requirement of EN13157,JBT7334,ASME B30.16,AS1418.
With CE and TUV SUD Certificate

Product Introduction

Model		K08	K1	K1.6	K2.5	K3.2	K6.3	K9
WLL(t)		0.8	1	1.6	2.5	3.2	6.3	9
Standard Lift(m)		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Test Load(kN)		12	15	24	38	48	95	13.5
Effort Required For Rated WLL(n)		350	350	440	470	450	460	500
Strands Of Load Chain		1	1	1	1	1	2	3
Load Chain(mm)		5.6*15.7	5.6*15.7	7.1*19.9	8.8*24.6	10*28	10*28	10*28

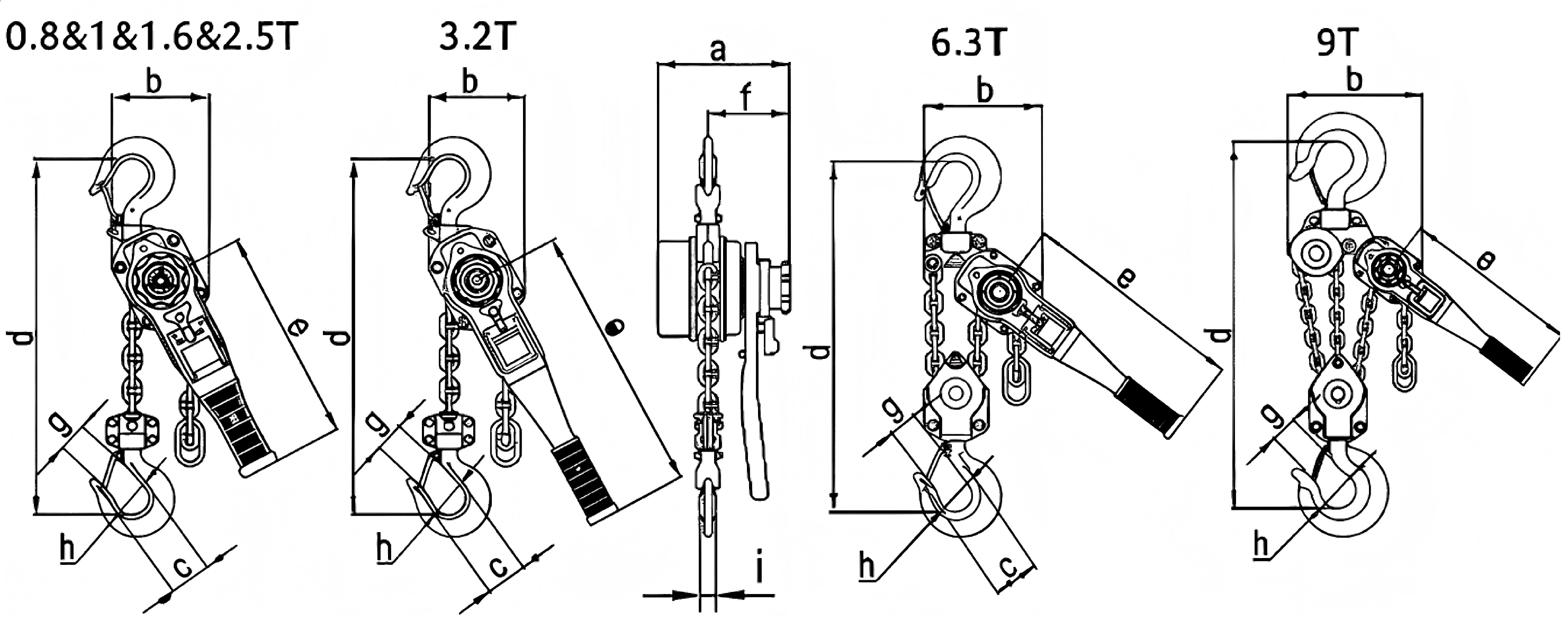

Dimension (mm)	a	146	146	164	179	196	196	196
	b	119	119	126	150	159	218	298
	c	41.5	49.4	52	58.6	61.9	84.3	93
	d	280	300	335	375	395	540	680
	e	245	245	265	265	415	415	415
	f	96	96	100	103	114	114	114
	g	26.5	31.5	35.5	41	43	53	64
	h	35.5	42.5	42.5	47	50	60	85
	i	14	15	19	21	24.5	34	40
N.W(kg)		5.7	5.9	8	11.2	13.6	26	40
