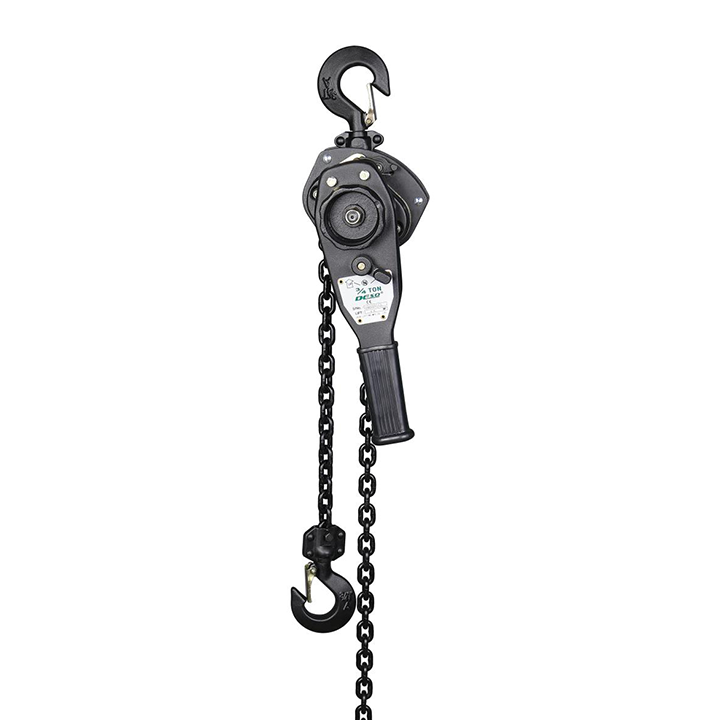

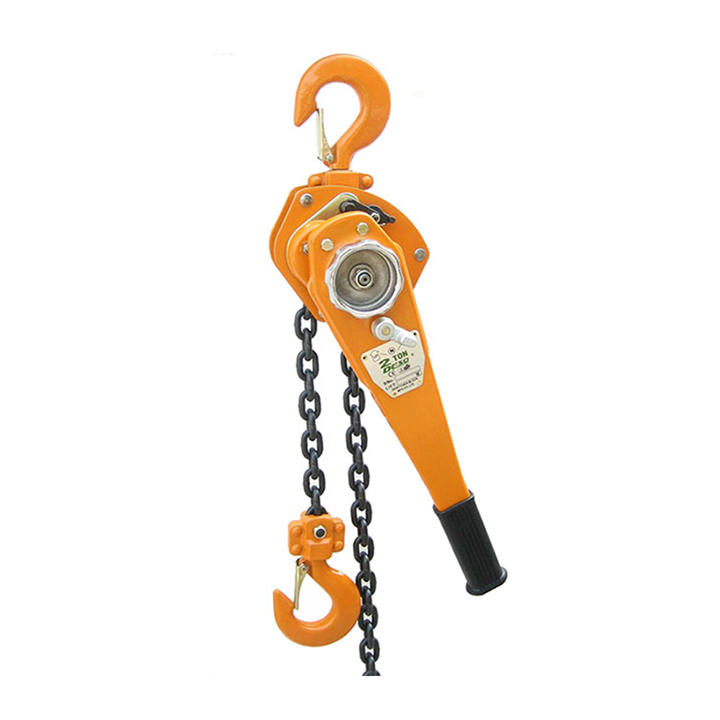

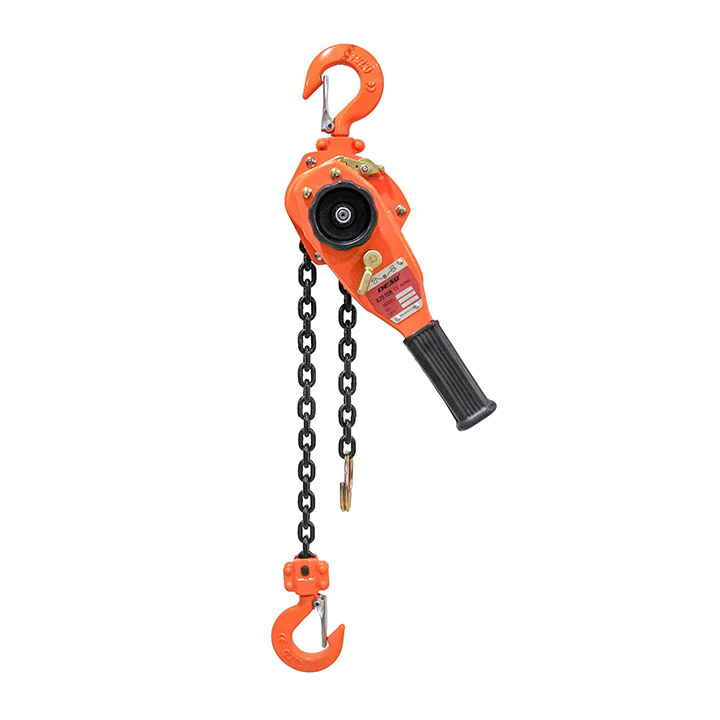

Lever Hoist V Type HSZ-V

Japan Model Compact Design, Small Body, Low Headroom - Wide Usage
With Retaining Pawl For Load Chain Fast Adjustment
High Precision Machining Gears
Impact Resistance Gear Cover
Double Pawl Brake System, Fused Brake Disc
High Precision Caged Roller Bearing
Chain Stopper Protects The Body
Calibrated G80 Chain For Heavy Duty Use
Quenched And Tempered Hooks
Individual Serial No.For Each Set,With Aluminium Sticker Showing Brand Deso,Capacity.Serial No.
Meet All The Requirement of EN13157,JBT7334,ASME B30.16,AS1418.
With CE and TUV SUD Certificate

Product Introduction

Model		V075	V1	V1.5	V2	V3	V6	V9
WLL(t)		0.75	1	1.5	2	3	6	9
Standard Lift(m)		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Test Load(kN)		11.25	15	22.5	30	45	90	112.5
Effort Required For Rated WLL(n)		140	185	230	251	385	385	390
Strands Of Load Chain		1	1	1	1	1	2	3
Load Chain(mm)		6*18	6*18	7.1*21	8*24	10*30	10*30	10*30

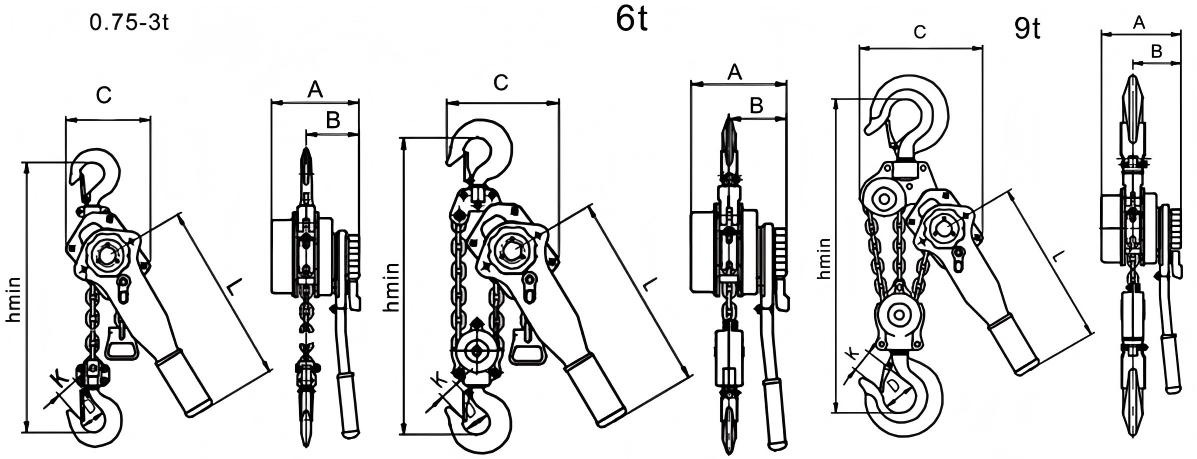

Dimension (mm)	A	153	153	166	175	195	195	195
	B	96	96	100	105	112	112	112
	C	130	130	150	150	160	202	242
	D	38	38	48	48	50	65	81
	H	295	295	335	385	450	550	660
	K	27	27	36	36	38	48	54
	L	260	260	365	365	365	365	365
N.W(kg)		7.5	7.5	9.5	15.5	16.5	27	40
Packing Meas(cm)		371515	371515	512018	512018	512120	522120	504830
Extra Weight Per Lifting Meter (kg)		0.8	0.8	1.1	1.4	2.2	4.4	6.6
