SNATCH BLOCK WITH HOOK(SBH)

1. All key parts are forged with high-strength alloy steel and heat treated.

2. 4:1 safe factor, CE certificate, and meets EN 13157, and ASME 30.26.

3. Equipped with carbon steel sheave and grease nipple, convenient for operating and repairing, and also extending service life.

4. JDB self-lubricating sliding bearing, conveniently, dose not need to be greased quite often, the national patent.

5. Permanent product batch No., blocks can be tracking easily.

6. Equipped with forged steel sheave or hot rolled steel sheave.

7. Customized according to the clients' requirement.

Product Introduction

Model

Sheave Dia (in)

WLL(t)

Wire Rope Size(mm)

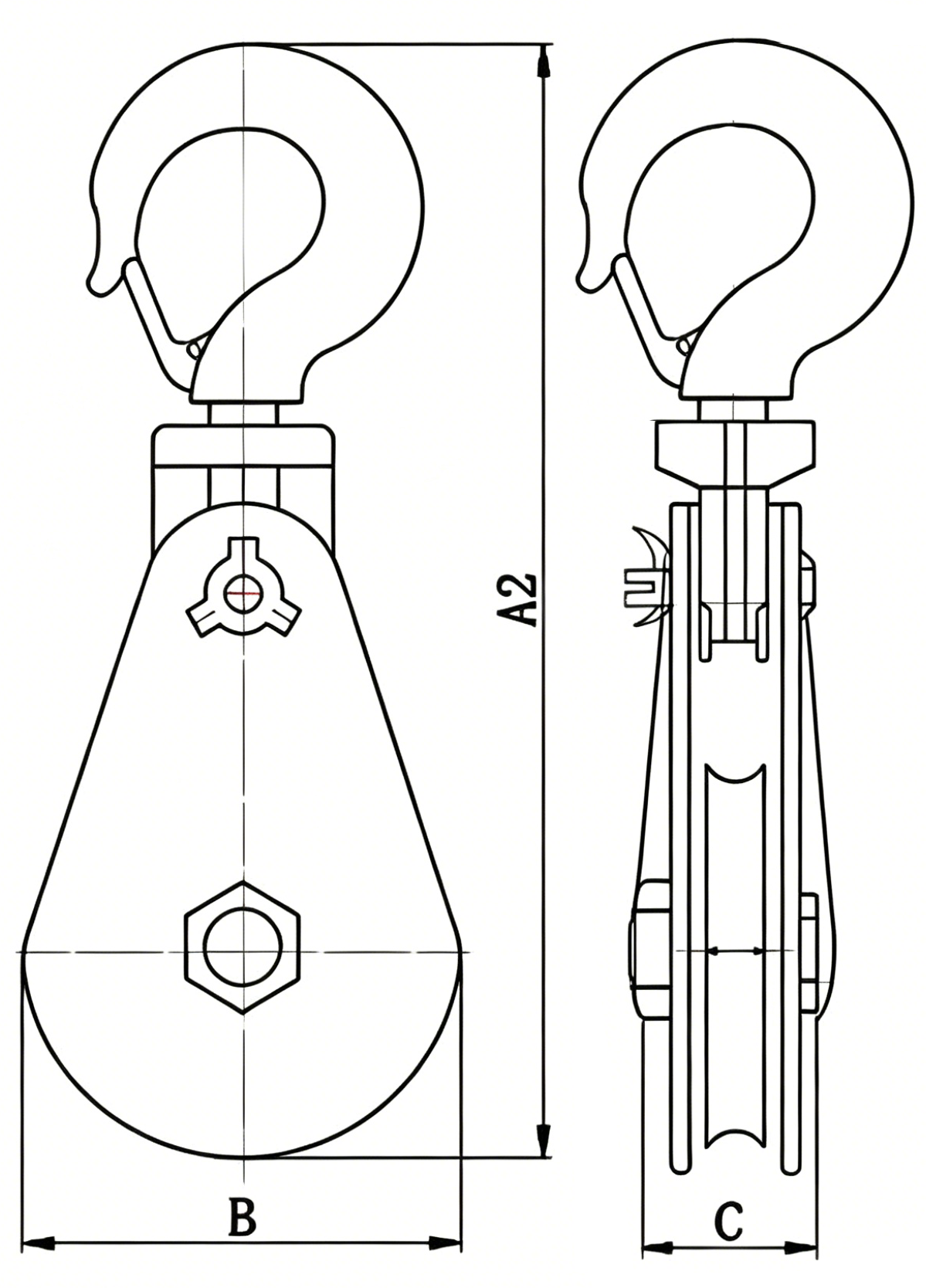

Dimension(mm)

N.W

(kg)

A2

B

C

SBH3”*2T

3

2T

7-9mm

237

76

54

2.4

SBH4-1/2”*4T

4-1/2

4T

10-12mm

355

116

71

6.8

SBH6”*8T

6

8T

16-19mm

495

155

90

12.2

SBH8”*8T

8

8T

20-22mm

551

205

103

20

SBH6”*10T

6

10T

16-19mm

520

155

95

17

SBH10”*10T

10

10T

24-26mm

562

260

115

39

SBH10”*12T

10

12T

24-26mm

705

260

115

41.5

SBH12”*12T

12

12T

24-26mm

801

307

133

58

SBH10”*15T

10

15T

19-22mm

713

260

135

56

SBH12”*15T

12

15T

19-22mm

804

307

135

60

SBH10”*20T

10

20T

25-29mm

777

257

150

60

SBH12”*20T

12

20T

25-29mm

833

307

150

68

SBH14”*22T

14

22T

29-32mm

960

360

140

115

SBH16”*22T

16

22T

29-32mm

1027

410

140

125

SBH16”*30T

16

30T

32-35mm

1033

415

140

188

SBH20”*30T

20

30T

32-35mm

1070

515

184

237

SBH24”*50T

24

50T

46-50mm

1445

625

240

408
