SNATCH BLOCK WITH SHACKLE (SBS)

1. All key parts are forged with high-strength alloy steel and heat treated.

2. 4:1 safe factor, CE certificate, and meets EN 13157, and ASME 30.26.

3. Equipped with carbon steel sheave and grease nipple, convenient for operating and repairing, and also extending service life.

4. JDB self-lubricating sliding bearing, conveniently, dose not need to be greased quite often, the national patent.

5. Permanent product batch No., blocks can be tracking easily.

6. Equipped with forged steel sheave or hot rolled steel sheave.

7. Customized according to the clients' requirement.

Product Introduction

Model

Sheave Dia (in)

WLL(t)

Wire Rope Size(mm)

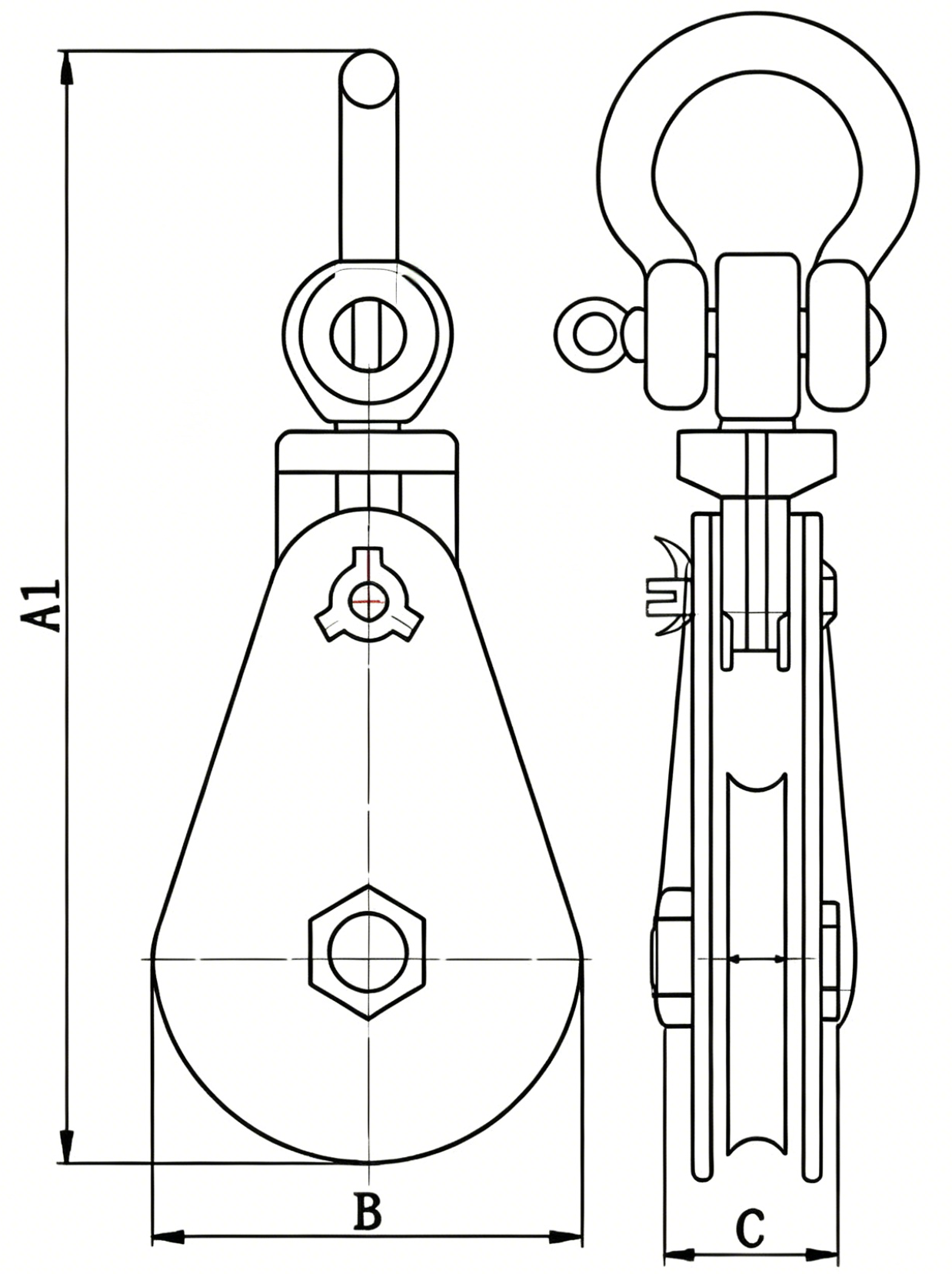

Dimension(mm)

N.W

(kg)

A2

B

C

SBS3”*2T

3

2T

7-9mm

237

76

54

2.3

SBS4-1/2”*4T

4-1/2

4T

10-12mm

355

116

71

6.6

SBS6”*8T

6

8T

16-19mm

495

155

90

11.2

SBS8”*8T

8

8T

20-22mm

560

205

103

19.3

SBS6”*10T

6

10T

16-19mm

520

155

95

16

SBS10”*10T

10

10T

24-26mm

679

260

115

38

SBS10”*12T

10

12T

24-26mm

685

260

115

40

SBS12”*12T

12

12T

24-26mm

767

307

133

56

SBS10”*15T

10

15T

19-22mm

713

260

135

54

SBS12”*15T

12

15T

19-22mm

788

307

135

58

SBS10”*20T

10

20T

25-29mm

777

257

150

56

SBS12”*20T

12

20T

25-29mm

833

307

150

62

SBS14”*22T

14

22T

29-32mm

952

360

140

112

SBS16”*22T

16

22T

29-32mm

1019

410

140

122

SBS16”*30T

16

30T

32-35mm

1128

415

155

164

SBS20”*30T

20

30T

32-35mm

1230

515

184

213

SBS24”*50T

24

50T

46-50mm

1330

615

189

340

SBS30*85T

30

85T

48-52mm

1910

765

236

590

SBS32*100T

32

100T

68-72mm

2100

824

310

650

SBS35*120T

35

120T

78-82mm

2350

900

330

700
