1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

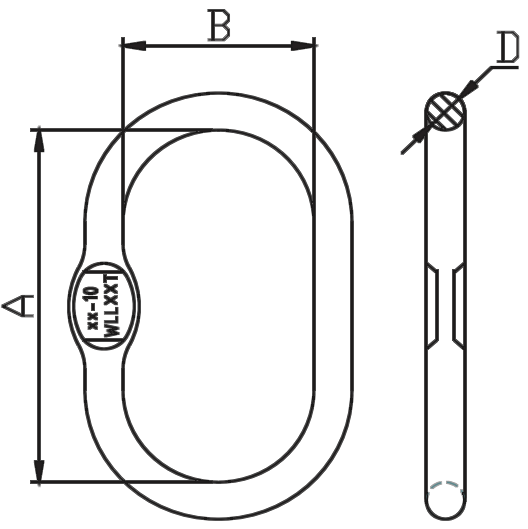

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||
|
1 Leg |
2 Legs |
A |
B |
D |
||||
|
|
DS1001-05 |
5 |
5 |
80 |
50 |
10 |
1.4 |
0.14 |
|
DS1001-76 |
6-7 |
6 |
110 |
60 |
13 |
2.3 |
0.35 |
|
|
DS1001-87 |
8 |
7 |
110 |
60 |
16 |
3.5 |
0.53 |
|
|
DS1001-108 |
10 |
8 |
135 |
75 |
18 |
5 |
0.86 |
|
|
DS1001-1310 |
13 |
10 |
160 |
90 |
23 |
7.6 |
1.6 |
|
|
DS1001-1613 |
16 |
13 |
180 |
100 |
27 |
10 |
2.46 |
|
|
DS1001-1916 |
19 |
16 |
200 |
110 |
33 |
14 |
4.14 |
|
|
DS1001-2219 |
22 |
19 |
260 |
140 |
36 |
25.1 |
62.22 |
|
|
DS1001-2622 |
26 |
22 |
340 |
180 |
45 |
20.8 |
12.85 |
|
|
DS1001-3226 |
32 |
26 |
350 |
190 |
50 |
40 |
16.22 |
|
|
DS1001-0032 |
--- |
32 |
460 |
200 |
60 |
60 |
27.01 |
|
