1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 5:1 With Larger Size (Oversize Inside Length&Width)
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

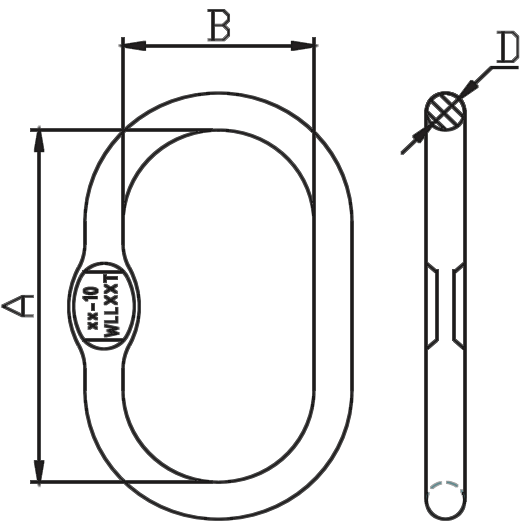

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||
|
1 Leg |
2 Legs |
A |
B |
D |
||||
|
|
DS1002-06 |
6 |
--- |
100 |
60 |
11 |
1.4 |
0.23 |
|
DS1002-86 |
8 |
6 |
120 |
70 |
13 |
2.5 |
0.4 |
|
|
DS1002-108 |
10 |
8 |
140 |
80 |
17 |
4 |
0.7 |
|
|
DS1002-1310 |
13 |
10 |
160 |
75 |
22 |
7.5 |
1.5 |
|
|
DS1002-16 |
16 |
--- |
190 |
110 |
26 |
10 |
2.2 |
|
|
DS1002-1613 |
16 |
13 |
180 |
100 |
27 |
12.5 |
2.51 |
|
|
DS1002-2016 |
20 |
16 |
240 |
140 |
32 |
17 |
5.1 |
|
|
DS1002-2220 |
22 |
20 |
250 |
150 |
38 |
25 |
7.2 |
|
|
DS1002-2622 |
26 |
22 |
250 |
150 |
41 |
26.5 |
8.3 |
|
|
DS1002-3226 |
32 |
26 |
300 |
180 |
48 |
40 |
13.6 |
|
