1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

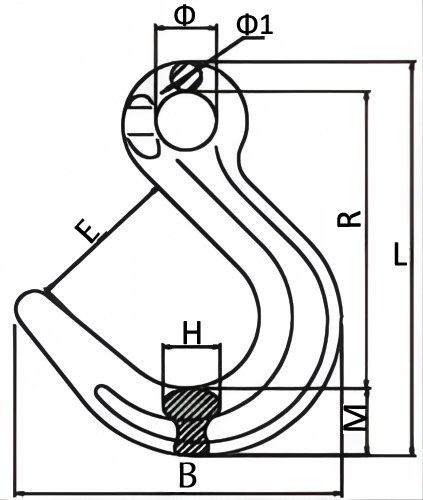

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL (t) |
KG/PC |
|||||||
|
⌀ |
⌀1 |
B |
E |
H |
L |
M |
R |
|||||
|
|
DS1014-06 |
6 |
20.5 |
10 |
100 |
49 |
17 |
133 |
19 |
102 |
1.4 |
0.38 |
|
DS1014-08 |
8 |
24 |
12 |
130 |
62 |
19 |
159 |
27.5 |
120 |
2.5 |
0.72 |
|
|
DS1014-10 |
10 |
31.5 |
15 |
153 |
73 |
25 |
199 |
31 |
153 |
4 |
1.25 |
|
|
DS1014-13 |
13 |
44 |
19 |
186 |
90 |
33 |
242 |
39.3 |
184 |
6.7 |
2.32 |
|
|
DS1014-16 |
16 |
49 |
22 |
218 |
105 |
37 |
279 |
42 |
216 |
10 |
3.45 |
|
