1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
10. Bearing Available At Extra Cost
|

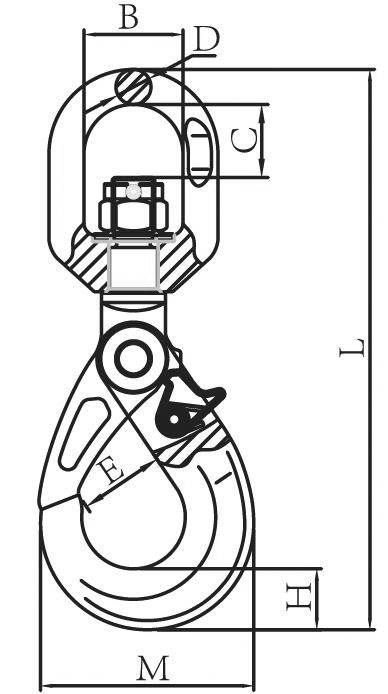

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL (t) |
KG/PC |
||||||
|
B |
C |
D |
E |
M |
L |
H |
|||||
|
|
DS1013-06 |
6 |
32 |
26 |
11.5 |
28 |
73 |
184 |
20 |
1.4 |
0.6 |
|
DS1013-08 |
8 |
36 |
29 |
13 |
36 |
90 |
226 |
20 |
2.5 |
1.1 |
|
|
DS1013-10 |
10 |
42 |
35 |
15.5 |
45 |
108 |
269 |
30 |
4 |
2 |
|
|
DS1013-13 |
13 |
50 |
41 |
17 |
53.6 |
1375 |
327 |
43 |
6.7 |
4 |
|
|
DS1013-16 |
16 |
70 |
58 |
21.5 |
61 |
1705 |
413 |
50.5 |
10 |
6.8 |
|
|
DS1013-20 |
20 |
72 |
63 |
26 |
76.5 |
1915 |
460 |
62 |
16 |
12.5 |
|
|
DS1013-22 |
22 |
97 |
96 |
33 |
76 |
205 |
566 |
65 |
19 |
17.1 |
|
|
DS1013-26 |
26 |
125 |
119 |
42 |
99 |
251 |
687 |
68 |
26.5 |
31.2 |
|
