1. Alloy Steel -Quenched And Tempered
2. Master Link Forged,Sub link Welded
3. Safety Factor 4:1 For Chain Sling,5:1 For Wire Rope Sling
4. Individually Proof Tested at 2.5 Times Of The WLL
5. MBL Tested By Random Pick Each Lot
6. 100% Magnaflux Crack Detection
7. Surface Finish:Powder Coated
8. 3-4 Legs Chain Sling WLL is 0°<β≤45°
|

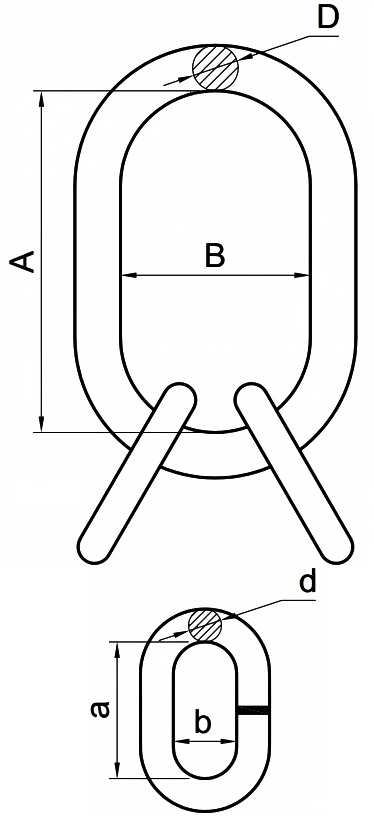

Drawing |
Item No. |
US Type G80 Chain |
Wire Rope WLL(t) |
Dimension |
KG/PC |
||||||
|
Size |
3-4 Legs Sling WLL(t) |
A |
B |
D |
a |
b |
d |
||||
|
|
DS0803-3/4 |
1/4” |
3.15 |
5.6 |
140 |
70 |
20 |
85 |
40 |
14 |
1.55 |
|
5/16” |
4.25 |
||||||||||
|
DS0803-7/8 |
5/16” |
4.25 |
6.9 |
160 |
95 |
22 |
85 |
40 |
14 |
2.18 |
|
|
3/8” |
6.7 |
||||||||||
|
DS0803-1 |
3/8” |
6.7 |
11.8 |
178 |
89 |
25 |
100 |
60 |
18 |
32.9 |
|
|
DS0803-1-1/4 |
1/2” |
11.2 |
17.7 |
220 |
110 |
32 |
100 |
60 |
22 |
7.18 |
|
|
5/8” |
17 |
||||||||||
|
DS0803-1-1/2 |
5/8” |
17 |
27.7 |
267 |
135 |
38 |
180 |
100 |
30 |
12.91 |
|
|
3/4” |
23.6 |
||||||||||
|
DS0803-1-3/4 |
3/4” |
23.6 |
38.5 |
305 |
152 |
45 |
180 |
100 |
32 |
21.25 |
|
|
7/8” |
31.5 |
||||||||||
|
DS0803-2 |
7/8” |
31.5 |
46.5 |
356 |
178 |
50 |
180 |
100 |
38 |
30.34 |
|
|
DS0803-2-1/2 |
1 |
45 |
72.6 |
406 |
203 |
64 |
355 |
178 |
50 |
64.4 |
|
|
DS0803-2-3/4 |
1-1/4” |
67 |
98.4 |
406 |
241 |
70 |
406 |
203 |
60 |
94.1 |
|
