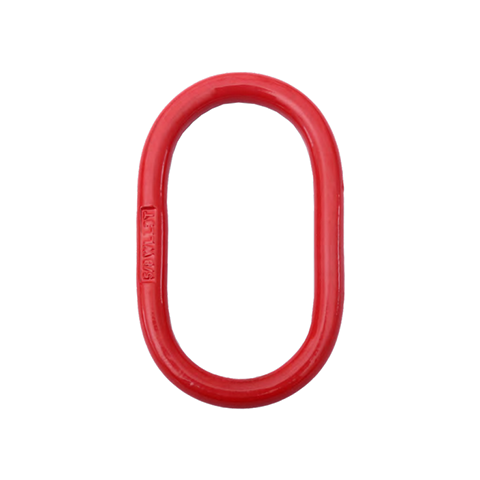

1. Larger Length&Width,Suitable For Big Crane Hook
2. Alloy Steel -Quenched And Tempered
3. All Sizes Are Forged
4. Safety Factor 4:1 For Chain Sling,5:1 For Wire Rope Sling
5. Individually Proof Tested at 2.5 Times Of The WLL
6. MBL Tested By Random Pick Each Lot
7. 100% Magnaflux Crack Detection
8. Surface Finish:Powder Coated
|

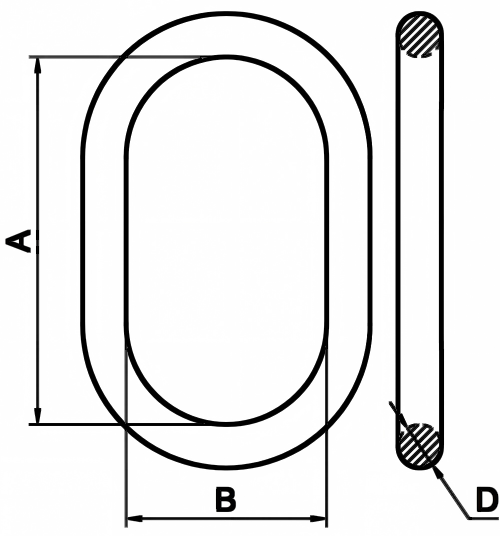

Drawing |
Item No. |
WLL(t) |
Dimension |
KG/PC |
||
|
A |
B |
D |
||||
|
|
DS0805-3.2 |
3.2 |
190 |
100 |
16 |
0.86 |
|
DS0805-6.4 |
6.4 |
300 |
210 |
25 |
3.53 |
|
|
DS0805-7 |
7 |
210 |
110 |
22 |
1.83 |
|
|
DS0805-11 |
11 |
300 |
210 |
32 |
5.94 |
|
|
DS0805-11.5 |
11.5 |
270 |
140 |
28 |
3.8 |
|
|
DS0805-14.2 |
14.2 |
210 |
110 |
28 |
3.06 |
|
|
DS0805-17 |
17 |
270 |
140 |
32 |
5.05 |
|
|
DS0805-19 |
19 |
420 |
220 |
38 |
10.78 |
|
|
DS0805-27 |
27 |
470 |
250 |
45 |
17.06 |
|
|
DS0805-28 |
28 |
270 |
140 |
38 |
7.29 |
|
|
DS0805-45 |
45 |
380 |
200 |
50 |
17.65 |
|
|
DS0805-65 |
65 |
430 |
220 |
60 |
28.85 |
|
