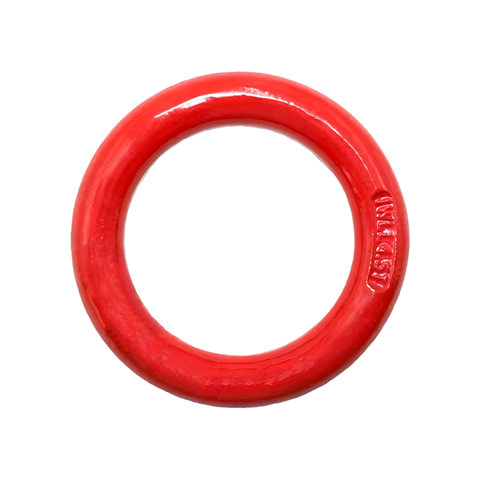

1. Alloy Steel -Quenched And Tempered
2. All Sizes Forged
3. Individually Proof Tested at 2.5 Times Of The WLL
4. MBL Tested By Random Pick Each Lot
5. 100% Magnaflux Crack Detection
6. Surface Finish:Powder Coated
7. Suitable For EN818-2 G80 Chain
|

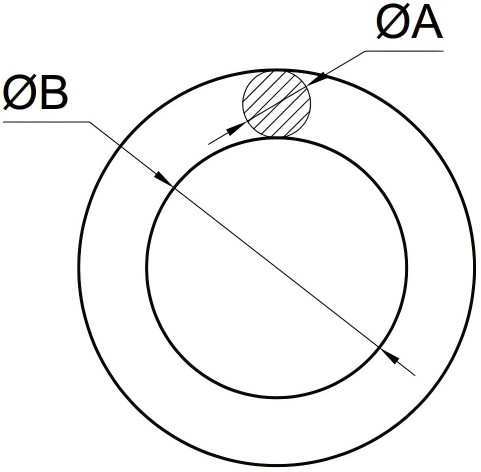

Drawing |
Item No. |
WLL(t) |
Dimension |
KG/PC |
|
|
⌀A |
⌀B |
||||
|
|
DS0808-01 |
0.5 |
9.5 |
50.8 |
0.11 |
|
DS0808-02 |
1 |
12.7 |
50.8 |
0.2 |
|
|
DS0808-03 |
1.5 |
15.9 |
76.2 |
0.45 |
|
|
DS0808-04 |
1.5 |
15.9 |
84 |
0.49 |
|
|
DS0808-05 |
1.7 |
19.1 |
76.2 |
0.67 |
|
|
DS0808-06 |
1.7 |
19.1 |
101.6 |
0.84 |
|
|
DS0808-07 |
3.3 |
22.2 |
101.6 |
1.2 |
|
|
DS0808-08 |
2.5 |
22.2 |
139.5 |
1.55 |
|
|
DS0808-09 |
4.9 |
25.4 |
101.6 |
1.59 |
|
|
DS0808-10 |
4.9 |
25.4 |
1.9.5 |
2.1 |
|
|
DS0808-11 |
4.9 |
28.6 |
152.4 |
2.87 |
|
|
DS0808-12 |
7.7 |
31.8 |
127 |
3.1 |
|
|
DS0808-13 |
7.7 |
31.8 |
152.4 |
3.6 |
|
|
DS0808-14 |
7.7 |
31.8 |
254 |
5.6 |
|
|
DS0808-15 |
8.6 |
34.9 |
152.4 |
4.5 |
|
|
DS0808-16 |
10 |
38.1 |
203.2 |
6.8 |
|
|
DS0808-17 |
10 |
38.1 |
222.3 |
7.32 |
|
|
DS0808-18 |
10 |
38.1 |
254 |
8.22 |
|
|
DS0808-19 |
15.9 |
50.8 |
304.8 |
17.8 |
|
