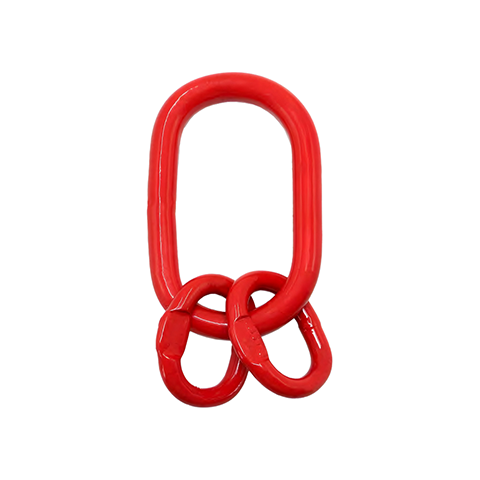

1. Alloy Steel -Quenched And Tempered
2. Master Link Forged,Sub link Welded
3. Safety Factor 4:1 For Chain Sling,5:1 For Wire Rope Sling
4. Individually Proof Tested at 2.5 Times Of The WLL
5. MBL Tested By Random Pick Each Lot
6. 100% Magnaflux Crack Detection
7. Surface Finish:Powder Coated
8. 3-4 Legs Chain Sling WLL is 0°<β≤45°
|

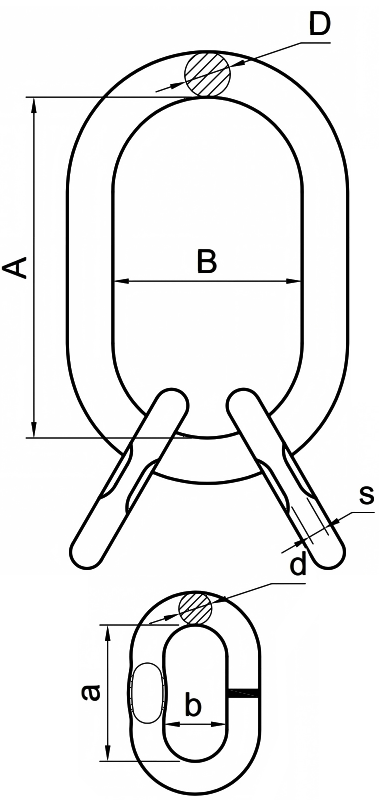

Drawing |
Item No. |
US Type G80 Chain |
Wire Rope WLL(t) |
Dimension |
KG/PC |
||||||
|
Size |
3-4 Legs Sling WLL(t) |
A |
B |
D |
a |
b |
d |
||||
|
|
DS0807-1/2” |
7/32” |
2.36 |
2.4 |
100 |
60 |
14 |
85 |
40 |
12 |
0.82 |
|
DS0807-11/16 |
1/4” |
3.15 |
3.2 |
160 |
90 |
18 |
100 |
60 |
14 |
1.6 |
|
|
DS0807-5/8 |
1/4” |
3.15 |
3.2 |
160 |
90 |
18 |
100 |
60 |
14 |
1.6 |
|
|
DS0807-3/4 |
5/16” |
4.25 |
4.2 |
160 |
90 |
20 |
100 |
60 |
14 |
1.95 |
|
|
DS0807-7/8 |
3/8” |
6.7 |
8 |
180 |
100 |
22 |
150 |
70 |
18 |
3.16 |
|
|
DS0807-1-1/8” |
1/2” |
11.2 |
12 |
270 |
140 |
28 |
160 |
90 |
22 |
6.75 |
|
|
DS0807-1-1/4 |
5/8” |
17 |
17 |
270 |
140 |
32 |
180 |
100 |
25 |
9.31 |
|
|
DS0807-1-1/2 |
3/4” |
23.6 |
25 |
300 |
160 |
40 |
270 |
140 |
31 |
18.4 |
|
|
DS0807-3/4 |
7/8” |
31.5 |
31.5 |
340 |
180 |
45 |
285 |
155 |
36 |
26.6 |
|
|
DS0807-2 |
1” |
45 |
45 |
350 |
190 |
51 |
340 |
180 |
45 |
42.91 |
|
