1. Super Alloy Steel -Quenched And Tempered
2. Master Link Forged,Sub links Welded According To EN1677-4
3. Designed For G100 Chain
4. 25% Stronger Than G80
5. Safety Factor 4:1
6. Individually Proof Tested at 2 Times Of The WLL
7. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
8. MBL Tested By Random Pick Each Lot
9. 100% Magnaflux Crack Detection
10. Surface Finish:Powder Coated
|

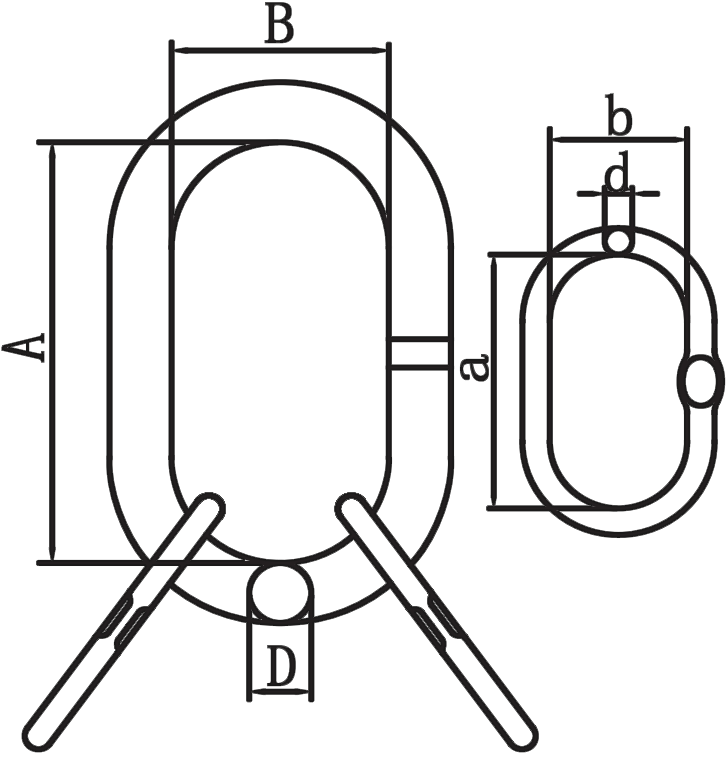

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||||
|
A |
B |
D |
a |
b |
d |
|||||
|
|
DS1003-06 |
6 |
135 |
75 |
19 |
54 |
25 |
13 |
3 |
1.3 |
|
DS1003-08 |
8 |
160 |
90 |
23 |
70 |
34 |
16.5 |
5.3 |
2.33 |
|
|
DS1003-10 |
10 |
180 |
100 |
27 |
85 |
40 |
19 |
8 |
3.7 |
|
|
DS1003-13 |
13 |
200 |
110 |
33 |
115 |
50 |
23 |
14 |
6.5 |
|
|
DS1003-16 |
16 |
260 |
140 |
36 |
140 |
65 |
27 |
21.2 |
10.1 |
|
|
DS1003-20 |
19/20 |
350 |
190 |
50 |
180 |
90 |
33 |
33.6 |
22.8 |
|
|
DS1003-22 |
22 |
350 |
190 |
50 |
180 |
100 |
36 |
40 |
26 |
|
