1. Super Alloy Steel -Quenched And Tempered
2. Both Master Link And Sub links Forged
3. Designed For G100 Chain
4. 25% Stronger Than G80
5. Safety Factor 4:1 With Larger Size (Oversize Inside Length&Width)
6. Individually Proof Tested at 2 Times Of The WLL
7. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
8. MBL Tested By Random Pick Each Lot
9. 100% Magnaflux Crack Detection
10. Surface Finish:Powder Coated
|

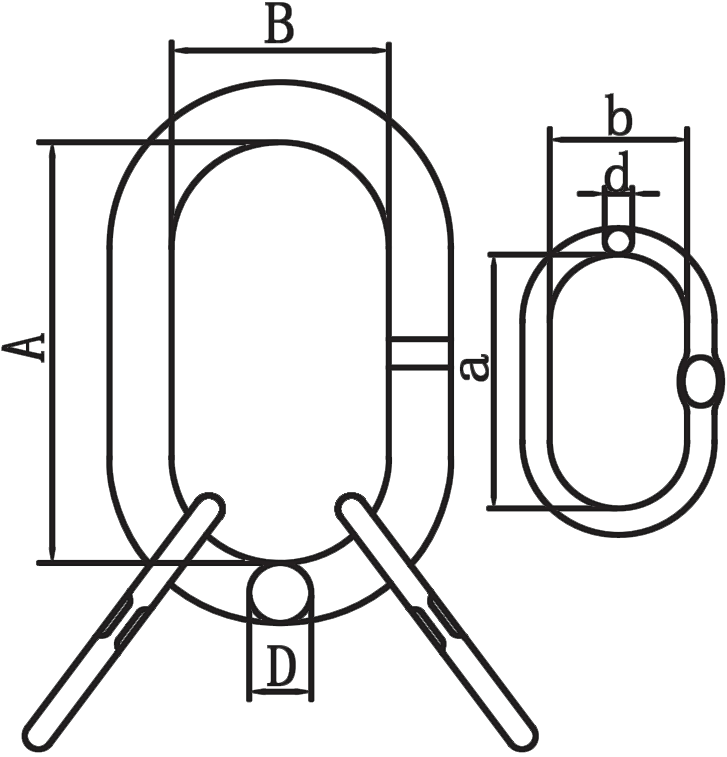

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||||
|
A |
B |
D |
a |
b |
d |
|||||
|
|
DS1004-06 |
6 |
150 |
90 |
19 |
120 |
70 |
14 |
3.5 |
1.8 |
|
DS1004-08 |
8 |
160 |
95 |
22 |
140 |
80 |
18 |
5 |
3 |
|
|
DS1004-10 |
10 |
200 |
120 |
30 |
160 |
95 |
22 |
11.5 |
6.5 |
|
|
DS1004-13 |
13 |
250 |
150 |
40 |
190 |
110 |
26 |
17 |
15 |
|
|
DS1004-16 |
16 |
300 |
200 |
50 |
200 |
120 |
32 |
28 |
23 |
|
