1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

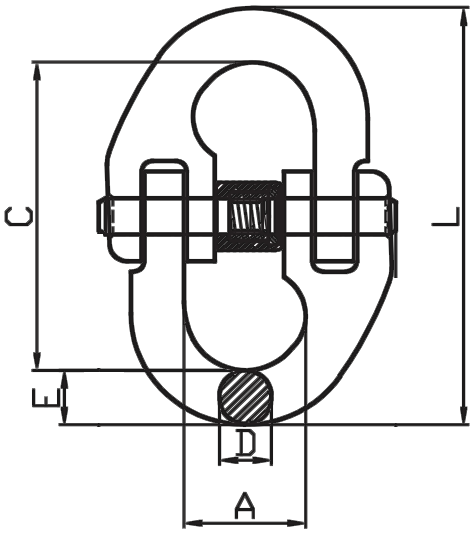

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
||||
|
A |
C |
D |
E |
L |
|||||
|
|
DS1005-06 |
6 |
16.9 |
44.5 |
7 |
8.5 |
62 |
1.4 |
0.08 |
|
DS1005-07 |
7 |
22.5 |
59 |
8.2 |
10 |
79 |
1.9 |
0.16 |
|
|
DS1005-78 |
7/8 |
22 |
59 |
8.5 |
11 |
81 |
2.5 |
0.17 |
|
|
DS1005-08 |
8 |
22.7 |
63 |
10 |
10.5 |
84 |
2.5 |
0.18 |
|
|
DS1005-10 |
10 |
22.7 |
71 |
12.6 |
12.6 |
96 |
4 |
0.34 |
|
|
DS1005-13 |
13 |
33.2 |
92.5 |
16.5 |
16.5 |
126 |
6.7 |
0.68 |
|
|
DS1005-16 |
16 |
39 |
106.5 |
20 |
20 |
147 |
10 |
1.22 |
|
|
DS1005-20 |
20 |
47.3 |
123 |
25 |
25 |
173 |
16 |
2.13 |
|
|
DS1005-22 |
22 |
55 |
137.5 |
27 |
27 |
192 |
19 |
3 |
|
|
DS1005-26 |
26 |
68 |
163 |
32 |
32 |
227 |
26.5 |
5.22 |
|
|
DS1005-32 |
32 |
87 |
197 |
40 |
40 |
277 |
40 |
9.55 |
|
