1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

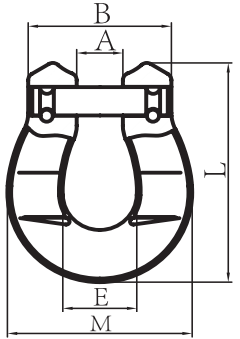

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
||||
|
A |
B |
E |
M |
L |
|||||
|
|
DS1006-06 |
6 |
8.5 |
32.5 |
20 |
44 |
55 |
1.4 |
0.12 |
|
DS1006-08 |
8 |
10.5 |
42 |
24 |
60 |
73.5 |
2.5 |
0.27 |
|
|
DS1006-10 |
10 |
12.5 |
48.5 |
31 |
70 |
90 |
4 |
0.44 |
|
|
DS1006-13 |
13 |
16 |
60 |
38.8 |
90 |
109 |
6.7 |
0.89 |
|
|
DS1006-16 |
16 |
19 |
76.5 |
51 |
112 |
141.5 |
10 |
1.77 |
|
