1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

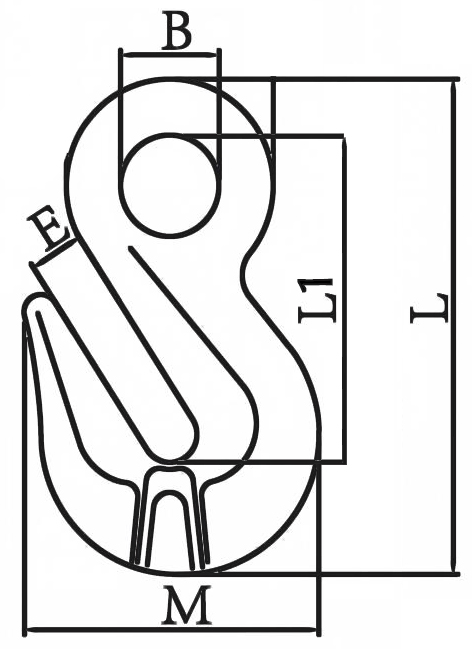

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
||||
|
B |
E |
M |
L1 |
L |
|||||
|
|
DS1007-06 |
6 |
13.5 |
8 |
43.5 |
46 |
73 |
1.4 |
0.15 |
|
DS1007-08 |
8 |
17.5 |
11 |
53 |
61 |
93 |
2.5 |
0.3 |
|
|
DS1007-10 |
10 |
22 |
13.5 |
74 |
85 |
129 |
4 |
0.79 |
|
|
DS1007-13 |
13 |
27 |
15 |
96 |
104 |
166 |
6.7 |
1.67 |
|
|
DS1007-16 |
16 |
36 |
19 |
116 |
119 |
186 |
10 |
2.74 |
|
|
DS1007-20 |
20 |
44 |
25 |
145 |
146 |
225 |
16 |
4.72 |
|
|
DS1007-22 |
22 |
48.5 |
27 |
160.5 |
165.5 |
260.5 |
19 |
8.2 |
|
|
DS1007-26 |
26 |
52 |
34 |
190 |
204 |
311 |
26.5 |
11.35 |
|
