1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

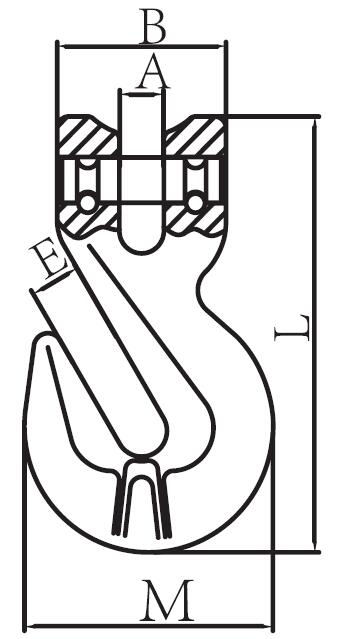

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
||||
|
A |
B |
E |
L |
M |
|||||
|
|
DS1008-06 |
6 |
7.5 |
32 |
18 |
44.5 |
8 |
1.4 |
0.22 |
|
DS1008-08 |
8 |
9.5 |
36 |
24 |
53 |
11 |
2.5 |
0.34 |
|
|
DS1008-10 |
10 |
12.5 |
46 |
29.5 |
73 |
13.5 |
4 |
0.82 |
|
|
DS1008-13 |
13 |
15 |
59 |
37 |
92 |
15 |
6.7 |
1.75 |
|
|
DS1008-16 |
16 |
18.5 |
70 |
46 |
99 |
19 |
10 |
2.88 |
|
|
DS1008-20 |
20 |
24 |
85 |
52 |
123 |
25 |
16 |
4.84 |
|
|
DS1008-22 |
22 |
27 |
100 |
61 |
141 |
27 |
19 |
8.3 |
|
|
DS1008-26 |
26 |
30 |
110 |
70 |
187 |
34 |
26.5 |
13.72 |
|
