1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
10. With Cast Latch
|

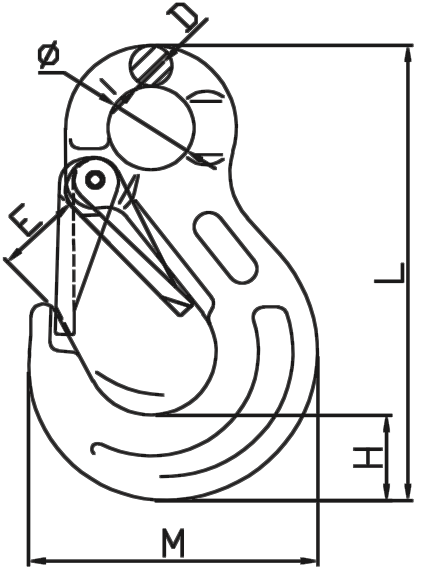

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||||
|
D |
E |
H |
⌀ |
M |
L |
|||||
|
|
DS1009-06 |
6 |
10 |
18.5 |
21 |
20.5 |
68 |
111 |
1.4 |
0.32 |
|
DS1009-07 |
7 |
11 |
25.5 |
26 |
25 |
86.9 |
137 |
1.9 |
0.4 |
|
|
DS1009-08 |
8 |
11 |
25 |
27.5 |
25 |
87.6 |
137 |
2.5 |
0.6 |
|
|
DS1009-10 |
10 |
16 |
29.5 |
32 |
35 |
106.4 |
171 |
4 |
1.2 |
|
|
DS1009-13 |
13 |
19 |
38 |
43.5 |
43 |
134 |
219 |
6.7 |
2.2 |
|
|
DS1009-16 |
16 |
24.5 |
46 |
50 |
51 |
158 |
260 |
10 |
3.5 |
|
|
DS1009-20 |
20 |
27 |
52 |
56 |
55 |
190 |
298 |
16 |
6.2 |
|
|
DS1009-22 |
22 |
29 |
66 |
62 |
60 |
214 |
330 |
19 |
11.5 |
|
|
DS1009-26 |
26 |
35 |
73 |
75 |
70 |
245 |
376 |
26.5 |
12.2 |
|
|
DS1009-32 |
32 |
39 |
87 |
89 |
81.5 |
270 |
458 |
39.3 |
17.5 |
|
