1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
10. With Cast Latch,All Load Pin 100% Individually Inspected And Tested
|

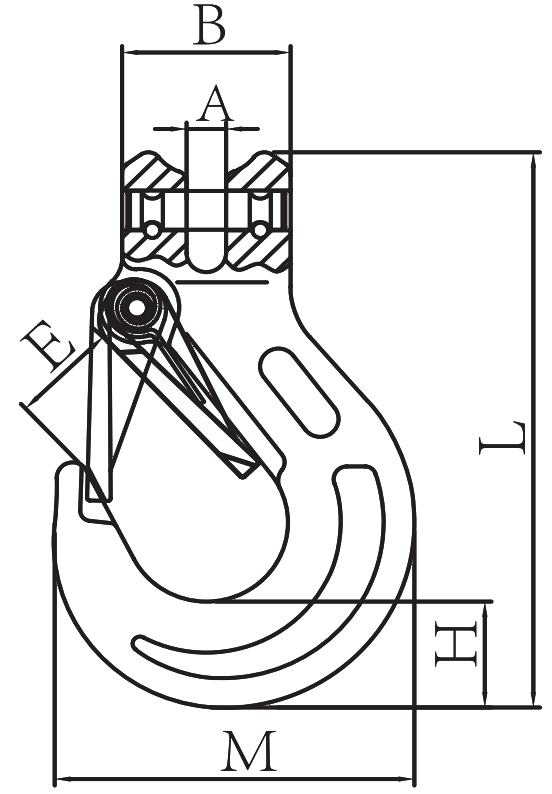

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL(t) |
KG/PC |
|||||
|
A |
B |
E |
H |
M |
L |
|||||
|
|
DS1010-06 |
6 |
7.5 |
32 |
18.5 |
21 |
68.5 |
109 |
1.4 |
0.33 |
|
DS1010-08 |
8 |
9.5 |
37 |
25 |
27.5 |
88 |
134 |
2.5 |
0.7 |
|
|
DS1010-10 |
10 |
12 |
48 |
29 |
33.5 |
106 |
162 |
4 |
1.3 |
|
|
DS1010-13 |
13 |
15 |
59 |
38 |
42 |
134 |
203 |
6.7 |
2.3 |
|
|
DS1010-16 |
16 |
18.5 |
70 |
44 |
50 |
161 |
248 |
10 |
3.6 |
|
|
DS1010-20 |
20 |
25 |
85 |
52 |
56 |
191 |
297 |
16 |
7 |
|
|
DS1010-22 |
22 |
27 |
100 |
66 |
62 |
215 |
326 |
19 |
12.1 |
|
