1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
|

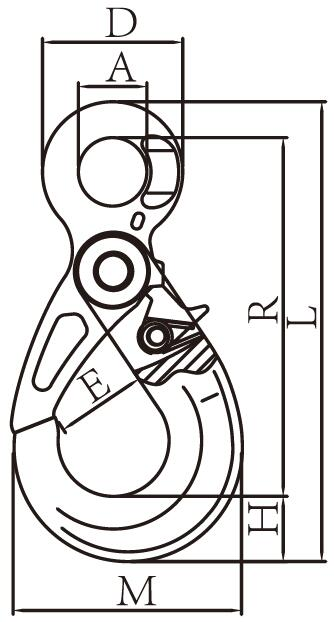

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL (t) |
KG/PC |
||||||
|
D |
A |
E |
M |
H |
R |
L |
|||||
|
|
DS1011-06 |
6 |
43 |
21 |
28 |
70 |
20 |
110 |
141 |
1.4 |
0.5 |
|
DS1011-07 |
7 |
52 |
27 |
31 |
81 |
26 |
127 |
162 |
1.9 |
0.81 |
|
|
DS1011-08 |
8 |
52 |
27 |
36 |
90 |
30 |
137 |
175 |
2.5 |
0.9 |
|
|
DS1011-10 |
10 |
64 |
34 |
45 |
108 |
40 |
170 |
2125 |
4 |
1.5 |
|
|
DS1011-13 |
13 |
80 |
40 |
53 |
138.5 |
53 |
209 |
270 |
6.7 |
2.7 |
|
|
DS1011-16 |
16 |
104 |
50 |
61 |
170.5 |
62 |
256 |
333 |
10 |
5.7 |
|
|
DS1011-20 |
20 |
120 |
60 |
76 |
192.5 |
66 |
277 |
369 |
16 |
7.9 |
|
|
DS1011-22 |
22 |
134 |
70 |
80 |
205 |
68 |
319 |
417 |
19 |
11.2 |
|
|
DS1011-26 |
26 |
154 |
76 |
99 |
251 |
73 |
370 |
489 |
26.5 |
20.5 |
|
