1. Forged Super Alloy Steel -Quenched And Tempered
2. Designed For G100 Chain
3. 25% Stronger Than G80
4. Safety Factor 4:1
5. Individually Proof Tested at 2 Times Of The WLL
6. Fatigue Tested At 1.5 Time Of The WLL By Random Pick Each Lot
7. MBL Tested By Random Pick Each Lot
8. 100% Magnaflux Crack Detection
9. Surface Finish:Powder Coated
10. All Load Pin 100% Individually Inspected And Tested
|

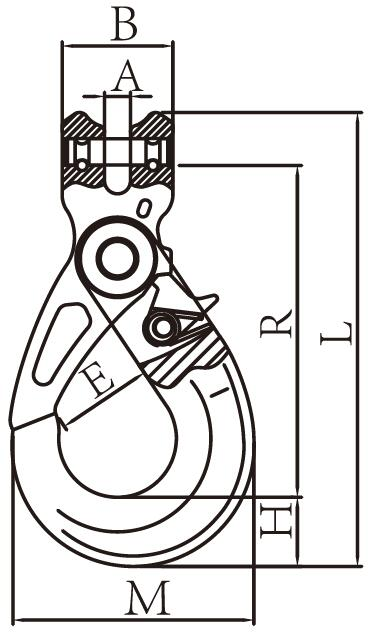

Drawing |
Item No. |
G100 Chain |
Dimension(mm) |
WLL (t) |
KG/PC |
||||||
|
B |
A |
E |
M |
H |
R |
L |
|||||
|
|
DS1012-06 |
6 |
32 |
8 |
28 |
70 |
20 |
96 |
131 |
1.4 |
0.5 |
|
DS1012-08 |
8 |
36 |
9.5 |
35 |
90 |
26 |
123 |
166 |
2.5 |
0.9 |
|
|
DS1012-10 |
10 |
46 |
12 |
45 |
109 |
30 |
144 |
1965 |
4 |
1.4 |
|
|
DS1012-13 |
13 |
59 |
15 |
53 |
138.5 |
40 |
182 |
251 |
6.7 |
2.9 |
|
|
DS1012-16 |
16 |
70 |
18 |
62 |
170.5 |
50 |
217 |
303 |
10 |
5.5 |
|
|
DS1012-18 |
18 |
78 |
22 |
73 |
183 |
55 |
227 |
322 |
12.5 |
8.5 |
|
|
DS1012-20 |
20 |
85 |
25 |
76 |
192.5 |
62 |
235 |
3375 |
16 |
8.6 |
|
|
DS1012-22 |
22 |
98 |
25 |
80 |
205 |
66 |
276.5 |
391 |
19 |
12.1 |
|
|
DS1012-26 |
26 |
118 |
30 |
99 |
250 |
72 |
343 |
484 |
26.5 |
21.15 |
|
