1. Alloy Steel -Quenched And Tempered
2. All Sizes Are Welded
3. Safety Factor 4:1 For Chain Sling,5:1 For Wire Rope Sling
4. Individually Proof Tested at 2.5 Times Of The WLL
5. MBL Tested By Random Pick Each Lot
6. 100% Magnaflux Crack Detection
7. Surface Finish:Powder Coated
8. 2 Legs Chain Sling WLL is 0°<β≤45°
|

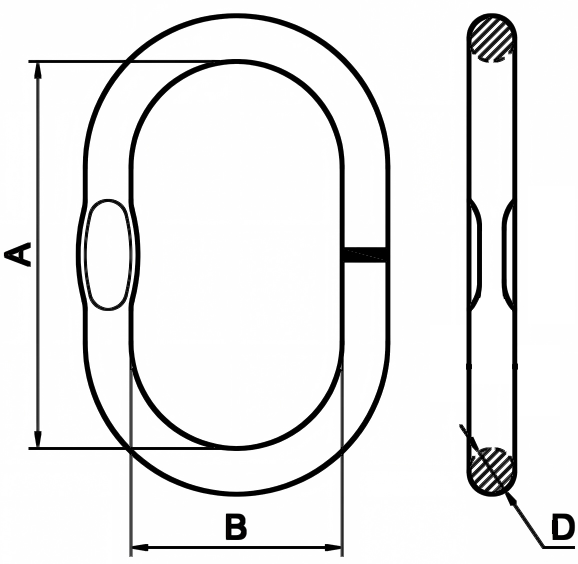

Drawing |
Item No. |
US Type G80 Chain |
Wire Rope WLL(t) |
Dimension(MM) |
KG/PC |
||||
|
Size |
WLL(t) |
||||||||
|
1 Leg |
2 Legs |
A |
B |
D |
|||||
|
|
DS0806-7/16 |
1/4” |
1.12 |
1.6 |
1.6 |
100 |
60 |
12 |
0.27 |
|
9/32” |
1.5 |
-- |
|||||||
|
DS0806-1/2 |
9/32” |
1.5 |
2.12 |
2.5 |
100 |
60 |
14 |
0.38 |
|
|
5/16” |
2 |
-- |
|||||||
|
DS0806-11/16 |
5/16” |
2 |
2.8 |
4 |
160 |
90 |
18 |
0.85 |
|
|
3/8” |
3.15 |
-- |
|||||||
|
DS0806-3/4 |
3/8” |
3.15 |
4.25 |
6.5 |
160 |
90 |
20 |
1.2 |
|
|
1/2” |
5.3 |
-- |
|||||||
|
DS0806-7/8 |
1/2” |
5.3 |
7.5 |
8 |
180 |
100 |
22 |
1.63 |
|
|
5/8” |
8 |
-- |
|||||||
|
DS0806-1 |
5/8” |
8 |
11.2 |
11.5 |
180 |
100 |
25 |
2.13 |
|
|
19MM |
11.2 |
-- |
|||||||
|
DS0806-1-1/8 |
3/4” |
12.5 |
-- |
11.8 |
270 |
140 |
28 |
3.81 |
|
|
DS0806-1-1/4 |
19MM |
11.2 |
16 |
16 |
270 |
140 |
32 |
5.05 |
|
|
7/8” |
15 |
-- |
|||||||
|
DS0806-1-3/8 |
7/8” |
15 |
21.2 |
24 |
285 |
155 |
36 |
6.83 |
|
|
1” |
21.2 |
-- |
|||||||
|
DS0806-1-1/2 |
28MM |
25 |
-- |
25 |
300 |
160 |
40 |
8.9 |
|
|
DS0806-1-3/4 |
1” |
21.2 |
30 |
31.5 |
340 |
180 |
45 |
12.8 |
|
|
1-1/4” |
31.5 |
-- |
|||||||
|
DS0806-2 |
1-1/4” |
31.5 |
45 |
45 |
390 |
215 |
51 |
17.3 |
|
